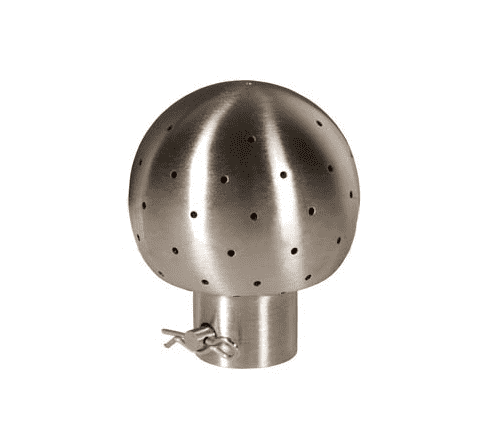

STC-180T-R100 Dixon Valve 1" 316L Stainless Steel Sanitary Stationary Spray Ball - 180 deg. Top Spray Pattern

$61.35

Dixon Sanitary Fittings
Sanitary Stationary Spray Ball

Typically used in food and beverage industries for cleaning storage tanks.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: STC-180T-R100 Dixon
Features:
  • Heavy stainless steel construction provides longer life.
  • Stationary - designed to be mounted to a tube or pipe.
  • 2 mm spray holes.
316L Stainless Steel
Part Number
304 Stainless Steel
Part Number
Size Pin Length Spray Pattern Dimensions Pin Size Weight (Lbs.)
A B C D E
STC-360-R100 - 1" 1.47 360 Deg. 3.04" 2.95" 1.005" .975" .445" .226" 0.3600
STC-360-R150 - 1-1/2" 1.95 360 Deg. 3.54" 2.95" 1.505" .975" .445" .226" 0.5000
316L Stainless Steel
Part Number
304 Stainless Steel
Part Number
Size Pin Length Spray Pattern Dimensions Pin Size Weight (Lbs.)
A B C D E
STC-180B-R100 STC-180B-G100 1" 1.47 180 Deg. Bottom 3.54" 2.95" 1.005" .975" .445" .226" N/A
STC-180B-R150 - 1-1/2" 1.95 180 Deg. Bottom 3.54" 2.95" 1.505" .975" .445" .226" N/A
316L Stainless Steel
Part Number
304 Stainless Steel
Part Number
Size Pin Length Spray Pattern Dimensions Pin Size Weight (Lbs.)
A B C D E
STC-180T-R100 - 1" 1.47 180 Deg. Top 3.54" 2.95" 1.005" .975" .445" .226" N/A
STC-180T-R150 - 1-1/2" 1.95 180 Deg. Top 3.54" 2.95" 1.505" .975" .445" .226" 0.5100
