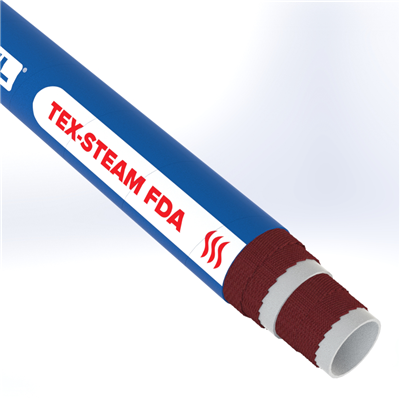

STFD-.75-100 by Texcel | TEX-STEAM™ FDA Series | Food Grade Steam Hose | 3/4" Hose ID | 105 PSI | Blue | 100ft Length

Save $205.04 Save $205.04
Original price $717.64
Original price $717.64 - Original price $717.64
Original price $717.64
Current price $512.60
$512.60 - $512.60
Current price $512.60
100 ft | $5.13 / ft

Texcel
TEX-STEAM™ FDA Series | Food Grade Steam Hose

Specifications for Variant SKU: STFD-.75-100 Texcel | 100 |
Series: TEX-STEAM™ FDA Series
Hose Color(s): Blue
Internal Diameter: 0.75in
Outer Diameter: 1.22in
Tubing Construction: EPDM
Cover Construction: EPDM
Steam Hose

TEX-STEAM™ FDA Food Grade Steam Hose

A specially compounded steam hose suitable for the delivery of potable hot water mixed with steam and detergents.

1

What is this hose used for?

Mainly used for washdown and sterilization in the food industry and manufacturing plants. The white, smooth, food quality EPDM tube is paired with a blue, smooth, cloth-impression EPDM cover for abrasion, ozone and weather resistance. Meets FDA title 21, part 177.2600 for aqueous foods.

  • Washdown
  • Sterilization
  • Food industry
  • Manufacturing plants
⚠ CAUTION: Drain the hose after each use for maximum hose life. Do not alternate use between steam and water.
2

What are the key specifications?

Tube

White, EPDM

Cover

Blue, EPDM (smooth, cloth impression)

Reinforcement

High strength synthetic plies

Temperature Range

-40°F to +338°F

Safety Factor

10:1

Working Pressure

105 psi (7 bar)

Compliance

FDA and USDA compliant

Branding

TEXCEL® TEX-STEAM™ FDA STEAM HOSE 105 PSI (7 BAR) W.P TEMP. -40F TO 338F (-40C to 170C) 10:1 SAFETY FACTOR

3

Which sizes are available?

Part Number Hose ID Hose OD Std. Length Working Pressure (psi) Weight (lbs/ft)
STFD-.5-100 1/2" 60/64" 100' 105 0.25
STFD-.75-100 3/4" 1-14/64" 100' 105 0.39
STFD-1.0-100 1" 1-29/64" 100' 105 0.50
i
Texcel recommends using Dixon Valve and Coupling’s Boss™ Stainless Steel Ground Joint and 4-Bolt System for TEX-STEAM™ FDA. Please consult Dixon for proper coupling procedures.
It is recommended that all food grade hose be thoroughly flushed prior to initial use.
