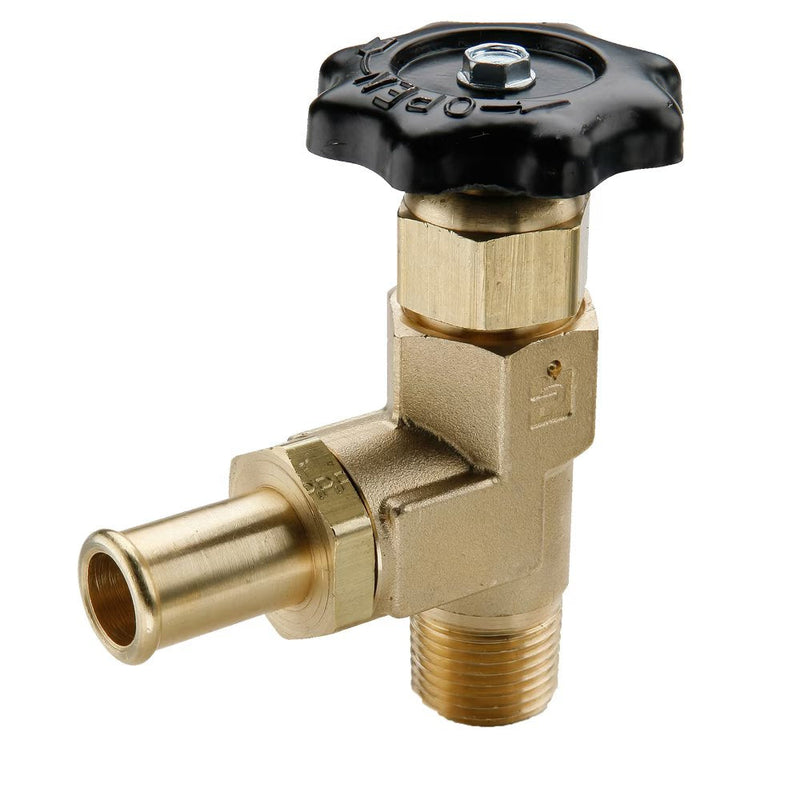

SV404P-12-8 by Parker | Truck Valves & Lanyard Valve | 3/4" Hose ID x 1/2" Male Pipe Thread | 3.73" Length | 90° Elbow | Brass | Pack of 5

Save $202.13

$505.33

$505.33 - $505.33

$505.33

$303.20

$303.20 - $303.20

$303.20

by Parker Hannifin
Truck Valves & Lanyard Valve:Truck Valve SV404P

Package Quantity: 5 Units

Specifications for Variant SKU: SV404P-12-8 Parker \| 5 \|
Series:	SV404P Series
Shape (Orientation):	90° Elbow
Material(s):	Brass
Special Properties:	Valved

Product Features:	Truck Valves Brass Body and Stem Flare, Hose, Tube and Pipe Connections Round and Pin Handles Lanyard Valve Low Temperature Seal All Brass Body Manual Release
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Water Oil Coolant Lines
Truck Valve Specification:
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-30° to +250° F (-34.4° to +121.1° C)
Lanyard Valve Specification:
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-40° to +200° F (-40° to +93.3° C)


Part Number	Hose ID	Pipe Thread	Flow	L	M	N
SV404P-10-8	5/8"	1/2"	.468"	3.71"	2.31"	1.34"
SV404P-12-6	3/4"	3/8"	.438"	3.73"	2.31"	1.34"
SV404P-12-8	3/4"	1/2"	.562"	3.73"	2.31"	1.34"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
