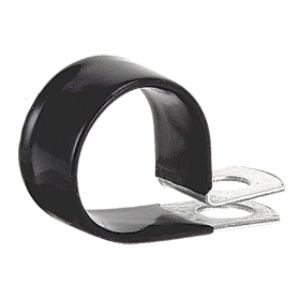

SVN-14 by Foster | Loop Clamp w/ PVC Black Coating | Clamp Diamter: 7/8" | Galvanized Steel
SVN-14 by Foster | Loop Clamp w/ PVC Black Coating | Clamp Diamter: 7/8" | Galvanized Steel

SVN-14 by Foster | Loop Clamp w/ PVC Black Coating | Clamp Diamter: 7/8" | Galvanized Steel

Save $0.58 Save $0.58
$1.45
$1.45 - $1.45
$1.45
$0.87
$0.87 - $0.87
$0.87

Foster
SVN Loop Clamps | Vinyl Dipped - Galvanized Steel 1/2" (13mm) Wide
Specifications for Variant SKU: SVN-14 Zsi-Foster
Series: SVN Series
Material(s): Galvanized Steel, PVC
Special Properties: Coated
Clamp Width: 0.5
Maximum Clamp I.D.: 0.875
Features:
  • Medium duty steel clamp that can be slipped over a tube or wire and closed with a bolt at assembly. Holes provide easy alignment. Its pre-developed shape allows for proper closing and excellent fit of the clamp.
  • Galvanized Steel
  • PVC coated, black color
  • Temperature range -25°F to +160°F ( -32°C to +71°C)

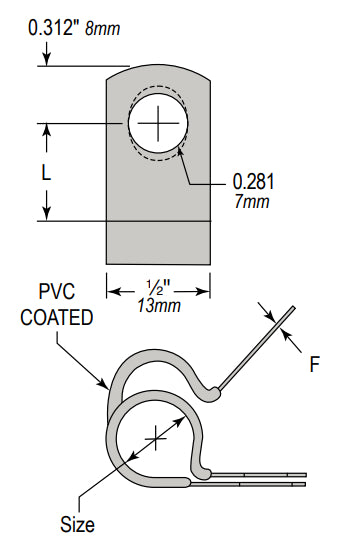

Part Number Clamp ID L F
SVN-03 3/16" 0.500" 0.032"
SVN-04 1/4" 0.531" 0.032"
SVN-05 5/16" 0.562" 0.032"
SVN-06 3/8" 0.593" 0.032"
SVN-08 XX/XX" 0.XXXXX" 0.048"
SVN-09 9/16" 0.687" 0.048"
SVN-10 5/8" 0.718" 0.048"
SVN-12 3/4" 0.781" 0.048"
SVN-14 7/8" 0.843" 0.048"
SVN-16 1" 0.906" 0.048"
SVN-18 1-1/8" 0.968" 0.048"

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
