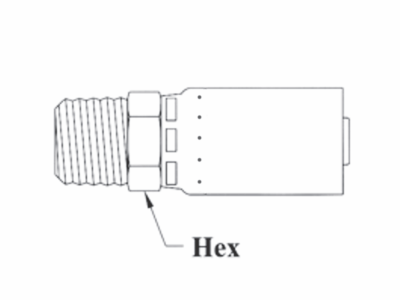

T01-4X2 Couplamatic T Series Coupling - NPTF - Male Solid - 1/4" Hose ID - 1/8-27 Thread Size

T01-4X2 by Couplamatic | T Series Coupling | 1/4" Hose ID x 1/8-27 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating | Pack of 10

Save $3.23 Save $3.23
$29.08
$29.08 - $29.08
$29.08
$25.85
$25.85 - $25.85
$25.85

Couplamatic Systems Inc.
T Series - NPTF - Male Solid

Package Quantity: 10 EA

Specifications for Variant SKU: T01-4X2 Couplamatic | 10 |
Series: T Series
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPTF, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: TR14 Series  |   RD7 Series  |   RD7NC Series  |   RD7TL Series  |   RD7TLNC Series  |   H7 Series  |   H7NC Series  |   H7TL Series  |   H7TLNC Series
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
Weatherhead E
T01-3X2 3/16" 1/8" 1/8-27 1/2" 03E-102
T01-3X4 3/16" 1/4" 1/4-18 9/16" -
T01-4X2 1/4" 1/8" 1/8-27 1/2" 04E-102
T01-4X4 1/4" 1/4" 1/4-18 9/16" 04E-104
T01-4X6 1/4" 3/8" 3/8-18 11/16" 04E-106
T01-5X4 5/16" 1/4" 1/4-18 9/16" 05E-104
T01-5X6 5/16" 3/8" 3/8-18 11/16" 05E-106
T01-6X4 3/8" 1/4" 1/4-18 9/16" 06E-104
T01-6X6 3/8" 3/8" 3/8-18 11/16" 06E-106
T01-6X8 3/8" 1/2" 1/2-14 7/8" 06E-108
T01-8X6 1/2" 3/8" 3/8-18 3/4" 08E-106
T01-8X8 1/2" 1/2" 1/2-14 7/8" 08E-108
T01-12X12 3/4" 3/4" 3/4-14 1-1/16" 12E-112
T01-16X16 1" 1" 1-11-1/2 1-3/8" 16E-116
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
