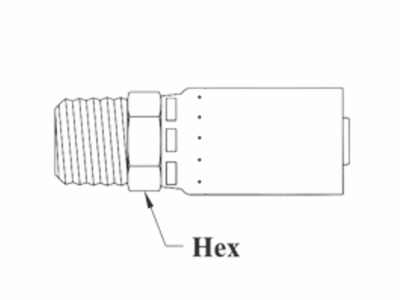

T01-8X8 Couplamatic T Series Coupling - NPTF - Male Solid - 1/2" Hose ID - 1/2-14 Thread Size

T01-8X8 by Couplamatic | T Series Coupling | 1/2" Hose ID x 1/2-14 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating | Pack of 10

Save $24.42

$61.05

$61.05 - $61.05

$61.05

$36.63

$36.63 - $36.63

$36.63

Couplamatic Systems Inc.
T Series - NPTF - Male Solid

Package Quantity: 10 EA

Specifications for Variant SKU: T01-8X8 Couplamatic \| 10 \|
Series:	T Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPTF, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	TR14 Series \| RD7 Series \| RD7NC Series \| RD7TL Series \| RD7TLNC Series \| H7 Series \| H7NC Series \| H7TL Series \| H7TLNC Series

Description:
The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp. Trivalent Zinc Plating.

Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Weatherhead E
T01-3X2	3/16"	1/8"	1/8-27	1/2"	03E-102
T01-3X4	3/16"	1/4"	1/4-18	9/16"	-
T01-4X2	1/4"	1/8"	1/8-27	1/2"	04E-102
T01-4X4	1/4"	1/4"	1/4-18	9/16"	04E-104
T01-4X6	1/4"	3/8"	3/8-18	11/16"	04E-106
T01-5X4	5/16"	1/4"	1/4-18	9/16"	05E-104
T01-5X6	5/16"	3/8"	3/8-18	11/16"	05E-106
T01-6X4	3/8"	1/4"	1/4-18	9/16"	06E-104
T01-6X6	3/8"	3/8"	3/8-18	11/16"	06E-106
T01-6X8	3/8"	1/2"	1/2-14	7/8"	06E-108
T01-8X6	1/2"	3/8"	3/8-18	3/4"	08E-106
T01-8X8	1/2"	1/2"	1/2-14	7/8"	08E-108
T01-12X12	3/4"	3/4"	3/4-14	1-1/16"	12E-112
T01-16X16	1"	1"	1-11-1/2	1-3/8"	16E-116

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
