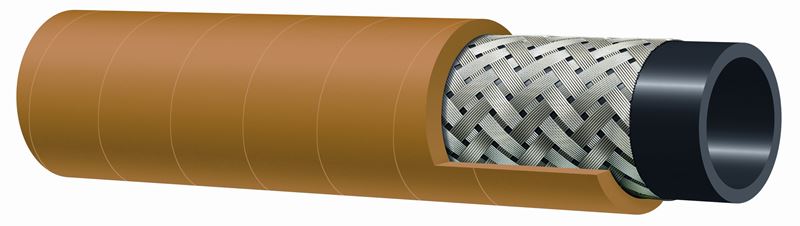

T140AK050X100 Alfagomma by Kuriyama | T140AK Series | Compressed Air Hose | 1/2" ID | 0.87" OD | 600 PSI | Yellow | 100ft Length

T140AK050X100 Alfagomma by Kuriyama | T140AK Series | Compressed Air Hose | 1/2" ID | 0.87" OD | 600 PSI | Yellow | 100ft Length

Save $85.00 Save $85.00
$479.44
$479.44 - $479.44
$479.44
$394.44
$394.44 - $394.44
$394.44

Kuriyama of America Inc.
Alfagomma | T140AK Series | Compressed Air Hose

For high pressure air hose for heavy-duty use in mines, quarries, construction and industry.

Package Quantity: 100 Foot

Specifications for Variant SKU: T140AK050X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T140AK Series
Hose Color(s): Yellow
Internal Diameter: 0.50in - 1/2in
Outer Diameter: 0.87in
Tubing Construction: SBR
Cover Construction: SBR
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: High pressure air hose for heavy-duty use in mines, quarries, construction and industry. SAE Rating: -
Other Ratings: - Tube: Black Extruded SBR - resistant to oil mist.
Reinforcement: High tensile steel wire braids. Cover: Yellow SBR - abrasion and ozone resistant - pin pricked.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Steel or malleable iron male insert NPT, female ground joint or washer type with spud, or universal quick-acting couplings attached with 2 or 4 bolt interlocking clamps or bands.
Branding: ALFAGOMMA - ITALY - T140 STEEL AIR (embossed)
Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working Pressure		 Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI (in) lbs/ft
T140AK050X50 T140AK050X100 1/2" 13mm 0.87" 22mm 600 PSI 2-1/2" 0.28 lbs/ft
T140AK075X50 T140AK075X100 3/4" 19mm 1.10" 28mm 600 PSI 4" 0.37 lbs/ft
T140AK100X50 T140AK100X100 1" 25mm 1.34" 34mm 600 PSI 5" 0.47 lbs/ft
T140AK125X50 T140AK125X100 1-1/4" 32mm 1.65" 42mm 600 PSI 6-1/2" 0.72 lbs/ft
T140AK150X50 T140AK150X100 1-1/2" 38mm 1.89" 48mm 600 PSI 7-1/2" 0.86 lbs/ft
T140AK200X50 T140AK200X100 2" 51mm 2.52" 64mm 600 PSI 10" 1.34 lbs/ft
T140AK250X50 T140AK250X100 2-1/2" 63mm 3.03" 77mm 450 PSI 12-1/2" 1.64 lbs/ft
T140AK300X50 T140AK300X100 3" 76mm 3.54" 90mm 450 PSI 15" 1.95 lbs/ft
T140AK400X50 T140AK400X100 4" 102mm 4.65" 118mm 450 PSI 20" 2.75 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
