T202AA800X25 Alfagomma by Kuriyama | T202AA Evolution Series | General Purpose Water Suction & Discharge Hose | 8" ID | 8.70" OD | 150 PSI | Black | 25ft Length

Save $546.71

$1,380.62

$1,380.62 - $1,380.62

$1,380.62

$833.91

$833.91 - $833.91

$833.91

Kuriyama of America Inc.
Alfagomma | T202AA Evolution Series | 150 PSI General Purpose Water Suction & Discharge Hose

A durable hose engineered for efficient water suction and delivery. Perfect for irrigation systems, construction sites, and agricultural use - capable of handling fertilizers and mild acid solutions with ease.

Package Quantity: 25 Foot

Specifications for Variant SKU: T202AA800X25 Kuriyama \| 25 \|
Brand:	Alfagomma
Series:	T202AA Series
Hose Color(s):	Black
Internal Diameter:	8in
Outer Diameter:	8.70in
Tubing Construction:	EPDM
Cover Construction:	EPDM

SPECIFICATIONS

Application:	Water suction and delivery hose. Suction and discharge of non-corrosive liquids for irrigation, construction, fertilizers and lasso acid solutions.	SAE Rating:	-
Other Ratings:	-	Tube:	Black EPDM.

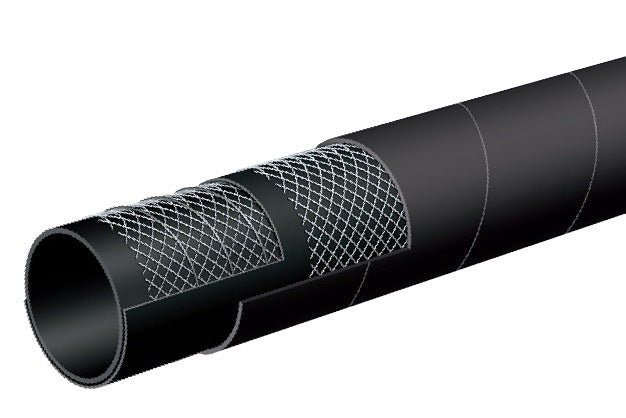

Reinforcement:	: Spiraled high tensile textile cords with flexible steel helix wire.	Cover:	Black EPDM - abrasion and ozone resistant.
Service Temperature Range:	-40°F (-40°C) to +212°F (+100°C)	Coupling Suggestions:	Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding:	ALFAGOMMA - ITALY - 202 EVOLUTION 10 BAR (150 PSI) GENERAL PURPOSE EPDM (in green letters)

Part Number 20ft	Part Number 25ft	Part Number 50ft	Part Number 100ft	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
Part Number 20ft	Part Number 25ft	Part Number 50ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	inHg	(in)	lbs/ft
-	-	-	T202AA100X100	1"	25mm	1.42"	36mm	150 psi	30"	2	0.48 lbs/ft
-	-	-	T202AA125X100	1-1/4"	32mm	1.69"	43mm	150 psi	30"	2.5	0.58 lbs/ft
-	-	-	T202AA150X100	1-1/2"	38mm	1.93"	49mm	150 psi	30"	3	0.68 lbs/ft
-	-	-	T202AA200X100	2"	51mm	2.44"	62mm	150 psi	30"	4	0.88 lbs/ft
-	-	-	T202AA250X100	2-1/2"	63mm	2.99"	76mm	150 psi	30"	7.5	1.36 lbs/ft
-	-	-	T202AA300X100	3"	76mm	3.50"	89mm	150 psi	30"	9	1.61 lbs/ft
-	-	-	T202AA350X100	3-1/2"	90mm	4.02"	102mm	150 psi	30"	10.5	1.82 lbs/ft
-	-	-	T202AA400X100	4"	102mm	4.57"	116mm	150 psi	30"	12	2.22 lbs/ft
T202AA500X20	-	T202AA500X50	-	5"	127mm	5.55"	141mm	150 psi	25"	18	3.18 lbs/ft
T202AA600X20	T202AA600X25	T202AA600X50	T202AA600X100	6"	152mm	6.61"	168mm	150 psi	25"	24	3.59 lbs/ft
T202AA800X20	T202AA800X25	-	-	8"	203mm	8.70"	221mm	150 psi	25"	32	6.64 lbs/ft
T202AA1000X20	-	-	-	10"	254mm	10.71"	272mm	150 psi	25"	50	9.09 lbs/ft
T202AA1200X20	-	-	-	12"	305mm	12.87"	327mm	150 psi	25"	61	12.54 lbs/ft
