T26-12X12 Couplamatic T Series Coupling - JIC Seat - 90° Female Swivel - 3/4" Hose ID - 1-1/16x12 Thread Size

T26-12X12 by Couplamatic | T Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread Size JIC Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 5

Save $9.11 Save $9.11
$82.00
$82.00 - $82.00
$82.00
$72.89
$72.89 - $72.89
$72.89

Couplamatic Systems Inc.
T Series - JIC/SAE Dual Seat - 90° Female Swivel

Package Quantity: 5 EA

Specifications for Variant SKU: T26-12X12 Couplamatic | 5 |
Series: T Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: TR14 Series  |   RD7 Series  |   RD7NC Series  |   RD7TL Series  |   RD7TLNC Series  |   H7 Series  |   H7NC Series  |   H7TL Series  |   H7TLNC Series
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

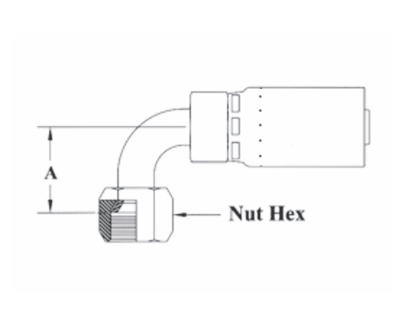

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex Cross Reference Part Numbers
Weatherhead E
T26-4X4 1/4" 1/4" 7/16x20 0.81" 9/16" 04E-664
T26-4X5 1/4" 5/16" 1/2x20 0.83" 5/8" 04E-665
T26-5X6* 5/16" 3/8" 9/16x18 0.910" 11/16" 05E-666
T26-6X6* 3/8" 3/8" 9/16x18 0.910" 11/16" 06E-666
T26-6X8 3/8" 1/2" 3/4x16 1.15" 7/8" 06E-668
T26-8X8 1/2" 1/2" 3/4x16 1.15" 7/8" 08E-668
T26-8X10 1/2" 5/8" 7/8x14 1.23" 1" 08E-670
T26-12X12* 3/4" 3/4" 1-1/16x12 1.88" 1-1/4" 12E-672
T26-16X16* 1" 1" 1-5/16x12 2.20" 1-1/2" 16E-676

*JIC Seat & Thread Only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
