T27-6X6 Couplamatic T Series Coupling - JIC Seat - 90° Female Swivel Long Drop - 3/8" Hose ID - 9/16x18 Thread Size

T27-6X6 by Couplamatic | T Series Coupling | 3/8" Hose ID x 9/16x18 Thread Size JIC Seat Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Pack of 10

Save $9.86

$88.73

$88.73 - $88.73

$88.73

$78.87

$78.87 - $78.87

$78.87

Couplamatic Systems Inc.
T Series - JIC/SAE Dual Seat - 90° Female Swivel Long Drop

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: T27-6X6 Couplamatic \| 10 \|
Series:	T Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female JIC, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	TR14 Series \| RD7 Series \| RD7NC Series \| RD7TL Series \| RD7TLNC Series \| H7 Series \| H7NC Series \| H7TL Series \| H7TLNC Series

Description:
The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp. Trivalent Zinc Plating.

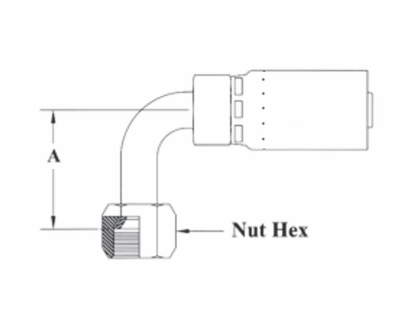

Part Number	Hose ID	Tube Size	Thread Size	A-DropInches	Nut Hex	Cross Reference Part Numbers
Weatherhead E
T27-4X4	1/4"	1/4"	7/16x20	1.80"	9/16"	04E-644
T26-6X6*	3/8"	3/8"	9/16x18	2.18"	11/16"	06E-646
T27-8X8	1/2"	1/2"	3/4x16	2.50"	7/8"	08E-648
T27-12X12*	3/4"	3/4"	1-1/16x12	3.73"	1-1/4"	12E-652
T27-16X16*	1"	1"	1-5/16x12	4.50"	1-1/2"	16E-656

*JIC Seat & Thread Only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
