T4018B ZSi-Foster | Beta Clamp Stacking Kit | Twin Series | For 1-1/8" x 1-1/8" Tube | Polypropylene/Steel

T4018B by ZSi-Foster | Beta Clamp Stacking Kit | Twin Series | For 1-1/8" x 1-1/8" Tube | Polypropylene/Steel

Save $0.45 Save $0.45
$4.41
$4.41 - $4.41
$4.41
$3.96
$3.96 - $3.96
$3.96

ZSI-Foster
Beta Hydraulic Clamps - Twin Series - Clamp Stacking Kit Assembly - Polypropylene/Steel

- Cushions are Polypropylene (Green Color).

- Ideal for general-duty applications subject to moderate levels of shock and vibration.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: T4018B ZSI-Foster
Series: Twin Series
Maximum Clamp I.D.: 1.125
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Polypropylene (Green)
Installation:

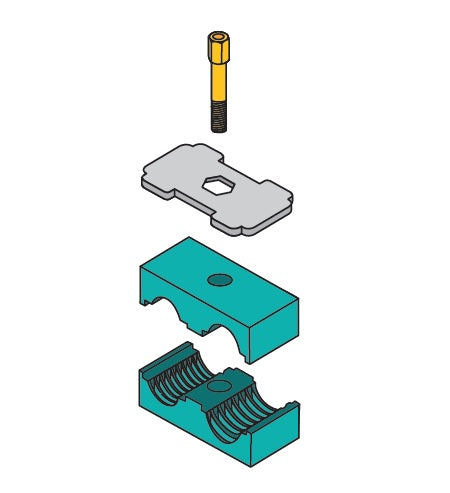

Assembly Includes:
Quantity Description
1 Each Stacking Bolt
1 Each Cover Plate
1 Set Cushions
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Bolt Length
- T1007B 1/8" x 1/8" 1/4-20 x 1-3/8
T1004B T2009B 1/4" x 1/4" Tube: 1/4-20 x 1-3/8
Pipe: 5/16-18 x 1-3/8
T1006B T2011B 3/8" x 3/8" Tube: 1/4-20 x 1-3/8
Pipe: 5/16-18 x 1-3/8
T2008B T3014B 1/2" x 1/2" Tube: 5/16-18 x 1-3/8
Pipe: 5/16-18 x 1-3/4
T2010B - 5/8" x 5/8" 5/16-18 x 1-3/8
T3012B T4017B 3/4" x 3/4" Tube: 5/16-18 x 1-3/4
Pipe: 5/16-18 x 2
T3015B - 7/8" x 7/8" 5/16-18 x 1-3/4
T3016B T5021B 1" x 1" Tube: 5/16-18 x 1-3/4
Pipe: 5/16-18 x 2-3/8
T4018B - 1-1/8" x 1-1/8" 5/16-18 x 2
T5020B T5027B 1-1/4" x 1-1/4" 5/16-18 x 2-3/8
T5024B - 1-1/2" x 1-1/2" 5/16-18 x 2-3/8
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
