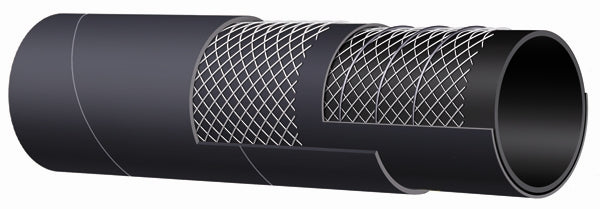

T601AA600X20 Alfagomma by Kuriyama | T601AA Series | Oil Rigger/Oil Field Frack Tank Hose | 6" ID | 6.61" OD | 150 PSI | Black | 20ft Length

Save $494.34

$1,148.01

$1,148.01 - $1,148.01

$1,148.01

$653.67

$653.67 - $653.67

$653.67

Kuriyama of America Inc.
Alfagomma | T601AA Series | Oil Rigger/Oil Field-Frack Tank Hose

For oil field vacuum tank service, for handling crude oil, frack solutions and slurries.

For applications up to 35% aromatics.

Package Quantity: 20 Foot

Specifications for Variant SKU: T601AA600X20 Kuriyama \| 20 \|
Brand:	Alfagomma
Series:	T601AA Series
Hose Color(s):	Black
Internal Diameter:	6in
Outer Diameter:	6.61in
Tubing Construction:	Nitrile/PVC Blend
Cover Construction:	SBR

Application:	Oil field vacuum tank service, for handling crude oil, frack solutions and slurries. Note: For applications up to 35% aromatics. Not for use with refined petroleum products.
Other Ratings:	-	Tube:	Black Nitrile - PVC blend, limited oil resistance, for oil field use.
Reinforcement:	High tensile textile cords with flexible steel helix wire.	Cover:	Black SBR - abrasion, ozone, limited oil resistance.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	Quick-Acting couplings or combination nipples attached with bands.
Branding:	ALFAGOMMA - ITALY T601 10 BAR (150 PSI) OIL FIELD-FRACK TANK HOSE (in blue letters)

Part Number 20ft	Part Number 100ft	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
Part Number 20ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	in Hg	(in)	lbs/ft
-	T601AA200X100	2"	51mm	2.40"	61mm	150 PSI	30 in Hg	10"	0.93 lbs/ft
-	T601AA300X100	3"	76mm	3.46"	88mm	150 PSI	27 in Hg	15"	1.73 lbs/ft
-	T601AA400X100	4"	102mm	4.57"	116mm	150 PSI	27 in Hg	20"	2.40 lbs/ft
T601AA600X20	T601AA600X100	6"	152mm	6.61"	168mm	150 PSI	24 in Hg	30"	4.59 lbs/ft
