T620AA800X20 Alfagomma by Kuriyama | T620AA Series | Fuel & Oil Suction & Discharge Hose | 8" ID | 8.86" OD | 300 PSI | Black | 20ft Length

Save $753.67

$2,769.99

$2,769.99 - $2,769.99

$2,769.99

$2,016.32

$2,016.32 - $2,016.32

$2,016.32

Kuriyama of America Inc.

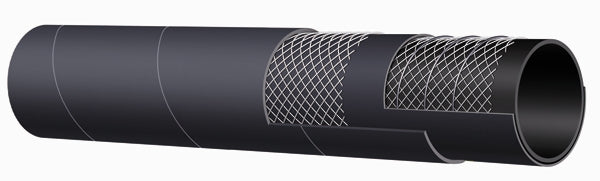

Alfagomma | T620AA Series | Fuel & Oil Suction & Discharge Hose

For Fuel and oil suction and discharge for up to 50% aromatic content. Designed for heavy duty applications.

Package Quantity: 20 Foot

Specifications for Variant SKU: T620AA800X20 Kuriyama \| 20 \|
Brand:	Alfagomma
Series:	T620AA Series
Hose Color(s):	Black
Internal Diameter:	8in
Outer Diameter:	8.86in
Tubing Construction:	Nitrile
Cover Construction:	Chloroprene
Special Properties:	Conductive Tube

Application:	Fuel and oil suction and discharge for up to 50% aromatic content. Designed for heavy duty applications.
Other Ratings:	-	Tube:	Black conductive NBR.
Reinforcement:	High tensile textile cords with steel helix wire and static wire.	Cover:	Black conductive CR - abrasion, ozone and hydrocarbon resistant.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Branding:	ALFAGOMMA - ITALY T620 - 20 BAR (300 PSI) PETROLEUM - S & D Ω (in red letters)

Part Number 20ft	Part Number 100ft	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
Part Number 20ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	in Hg	(in)	lbs/ft
-	T620AA200X100	2"	51mm	2.48"	63mm	300 PSI	30 in Hg	8"	1.10 lbs/ft
-	T620AA300X100	3"	76mm	3.54"	90mm	300 PSI	27 in Hg	12"	1.77 lbs/ft
-	T620AA400X100	4"	102mm	4.57"	116mm	300 PSI	27 in Hg	16"	2.43 lbs/ft
T620AA600X20	T620AA600X100	6"	152mm	6.69"	170mm	300 PSI	24 in Hg	24"	5.60 lbs/ft
T620AA800X20	-	8"	203mm	8.86"	225mm	300 PSI	21 in Hg	32"	9.24 lbs/ft
