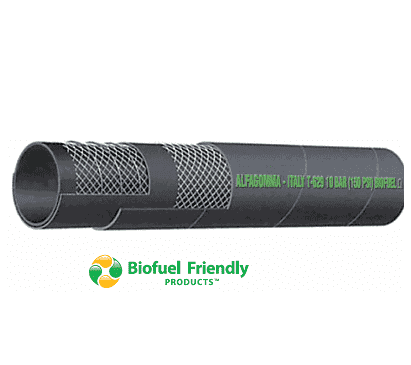

T629AA125X100 Kuriyama Alfagomma Black Biofuel Petroleum S & D Hose - 1-1/4" ID - 1.65" OD - 150 PSI - 100ft

T629AA125X100 Alfagomma by Kuriyama | Black Biofuel Petroleum S & D Hose | 1-1/4" ID | 1.65" OD | 150 PSI | 100ft Length

Save $389.42 Save $389.42
$1,362.98
$1,362.98 - $1,362.98
$1,362.98
$973.56
$973.56 - $973.56
$973.56

Kuriyama Alfagomma® T629AA Series 150 PSI Black Biofuel Petroleum Suction & Discharge Hose - Black Biofuel Friendly Product

Package Quantity: 100 FT

Specifications for Variant SKU: T629AA125X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T629AA Series
Hose Color(s): Black
Internal Diameter: 1.25in
Outer Diameter: 1.65in
Tubing Construction: Synthetic Rubber
Cover Construction: Neoprene
Special Properties: Conductive Tube

SPECIFICATIONS

Application: For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels - up to E98 and B100* with up to 60% aromatic content at ambient temperature. SAE Rating: N/A
Other Ratings: N/A Tube: Black conductive synthetic rubber.
Reinforcement: High tensile textile cords and steel helix wires. Cover: Black specially-blended neoprene - added resistance against abrasion, ozone and hydrocarbons.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • T629 is not recommended for use on a reel.
  • Branding: ALFAGOMMA - ITALY T629 - 10 BAR (150 PSI) BIOFUEL Ω (in green letters)
  • Coupling Suggestions: Quick-Acting or combination nipples attached with bands.
Part Number Nominal ID Nominal ID Max Rec. Working Pressure Vacuum HG Min. Bending Radius Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (in.) (ft.) (lbs./ft.)
T629AA075X100 3/4" 19mm 1.14" 29mm 150 PSI 30" 3" 100ft 0.41 lbs
T629AA100X100 1" 25mm 1.38" 35mm 150 PSI 30" 4" 100ft 0.51 lbs
T629AA125X100 1-1/4" 32mm 1.65" 42mm 150 PSI 30" 5" 100ft 0.60 lbs
T629AA150X100 1-1/2" 38mm 1.89" 48mm 150 PSI 30" 6" 100ft 0.71 lbs
T629AA200X100 2" 51mm 2.40" 61mm 150 PSI 30" 8" 100ft 0.91 lbs
T629AA250X100 2-1/2" 63mm 2.95" 75mm 150 PSI 27" 10" 100ft 1.42 lbs
T629AA300X100 3" 76mm 3.46" 88mm 150 PSI 27" 12" 100ft 1.71 lbs
T629AA400X100 4" 102mm 4.57" 116mm 150 PSI 27" 16" 100ft 2.38 lbs
*Applies to Biodiesels which meet the ASTM D6751 criteria.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
