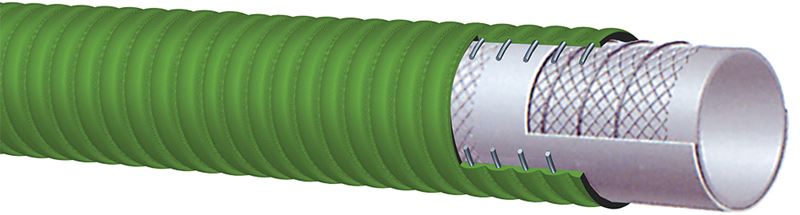

T714LG600X50 Alfagomma by Kuriyama | T714LG Series | FDA Corrugated Dry Food Material Handling Hose | 6" ID | 6.85" OD | 75 PSI | Green | 50ft Length

T714LG600X50 Alfagomma by Kuriyama | T714LG Series | FDA Corrugated Dry Food Material Handling Hose | 6" ID | 6.85" OD | 75 PSI | Green | 50ft Length

Save $744.04 Save $744.04
$2,700.85
$2,700.85 - $2,700.85
$2,700.85
$1,956.81
$1,956.81 - $1,956.81
$1,956.81

Kuriyama of America Inc.
Alfagomma | T714LG Series | FDA Corrugated Dry Food Material Handling Hose

For suction or discharge of wet or dry abrasive materials.

Suitable for handling materials for human consumption.

Package Quantity: 50 Foot

Specifications for Variant SKU: T714LG600X50 Kuriyama | 50 |
Brand: Alfagomma
Series: T714LG Series
Hose Color(s): Green
Internal Diameter: 6in
Outer Diameter: 6.85in
Tubing Construction: Gum Rubber
Cover Construction: Natural Rubber/SBR Blend
Applicable Specs & Approvals: Applicable FDA Requirements
Special Properties: Food Grade

SPECIFICATIONS

Application: For suction or discharge of wet or dry abrasive materials. Suitable for handling materials for human consumption.
Other Ratings: Meets FDA requirements. Tube: Natural white gum rubber 3/16" thick. Meets FDA requirements.
Reinforcement: Spiraled high tensile textile cords with flexible steel helix wire and static wire. Cover: Green corrugated Nat/SBR blend rubber.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding: ALFAGOMMA - ITALY T714 - 5 Bar (75 PSI) - BULK FOOD & MATERIAL - S & D (in white letters)
Part Number
20ft		 Part Number
50ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
T714LG500X20 T714LG500X50 5" 127mm 5.63" 143mm 75 PSI 24 in Hg 12.5" 3.8 lbs/ft
T714LG600X20 T714LG600X50 6" 152mm 6.85" 174mm 75 PSI 24 in Hg 24" 4.75 lbs/ft
T714LG800X20 - 8" 203mm 8.94" 227mm 75 PSI 21 in Hg 32" 7.01 lbs/ft
