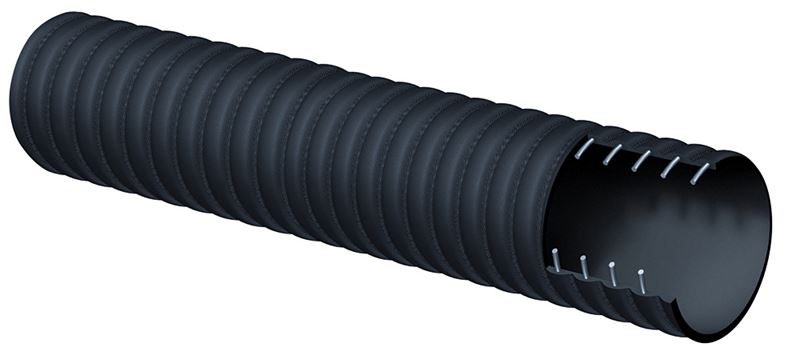

T719AA400X100 Alfagomma by Kuriyama | T719AA Series | Abrasive Slurry Suction & Discharge Hose | 4" ID | 5.24" OD | 150 PSI | Black | 100ft Length

T719AA400X100 Alfagomma by Kuriyama | T719AA Series | Abrasive Slurry Suction & Discharge Hose | 4" ID | 5.24" OD | 150 PSI | Black | 100ft Length

Save $1,243.14 Save $1,243.14
$5,381.34
$5,381.34 - $5,381.34
$5,381.34
$4,138.20
$4,138.20 - $4,138.20
$4,138.20

Kuriyama of America Inc.
Alfagomma | T719AA Series | Abrasive Slurry Suction & Discharge Hose

Designed to handle highly abrasive materials such as coal, sand and stone.

Ideal for mining, rock quarries, and cement industries.

Package Quantity: 100 Foot

Specifications for Variant SKU: T719AA400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T719AA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 5.24in
Tubing Construction: Natural Rubber
Cover Construction: Chloroprene
Special Properties: Conductive Tube, Conductive Hose Cover
Compatible with the following Series: ALFAMUFF Series  |   ALFASEAL Series

SPECIFICATIONS

Applications: - Mining Industry (crushed/ground ore, washed coal and waste products)
- Rock quarries (crushed/ground ore, sand and river stone)
- Cement industry (lime, stone and other slurries
Other Ratings: - Tube: Black conductive NR-abrasion resistance 50 mm3.
Reinforcement: High tensile textile cords with embedded steel helical wire. Cover: Corrugated black conductive CR-abrasion, ozone, seawater and hydrocarbon resistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: ALFAMUFF Series Field Replaceable Fixed Flange-Muff Couplings
Branding: ALFAGOMMA ITALY 719 10 bar (150 psi) BULK MATERIAL HANDLING S&D Ω (in white letters)
Other Features:
  • Abrasive Resistant Tube - Thick, highly abrasion resistant natural rubber (NR) tube. Designed to handle highly abrasive materials such as coal, sand and stone.
  • Heavy Duty Construction - High tensile cords with embedded steel wire helix designed for applications where the hose will be subject to abuse. Its chloroprene cover resists weathering, ozone, hydrocarbons and seawater.
  • Corrugated Outer Cover - Corrugated outer cover provides additional flexibility versus smooth cover hoses.
  • Conductive Materials - Conductive tube and cover materials dissipate static in potentially explosive environments.
Part Number
100ft		 ID OD Tube
Thickness		 Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F		 Weight Compatible
ALFAMUFF Series
Fixed Flange-Muff
Coupling
(in) (mm) (in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
T719AA200X100 2" 51mm 2.95" 75mm 0.236" 6mm 150 PSI 30 in Hg 10" 2.09 lbs/ft ALFAMUFF200
T719AA300X100 3" 76mm 4.49" 114mm 0.354" 9mm 150 PSI 30 in Hg 15" 4.96 lbs/ft ALFAMUFF300
T719AA400X100 4" 102mm 5.24" 133mm 0.315" 8mm 150 PSI 30 in Hg 20" 5.25 lbs/ft ALFAMUFF400
T719AA600X100 6" 152mm 7.40" 188mm 0.315" 8mm 150 PSI 30 in Hg 30" 9.53 lbs/ft ALFAMUFF600
T719AA800X100 8" 203mm 9.57" 243mm 0.315" 8mm 150 PSI 30 in Hg 48" 12.53 lbs/ft ALFAMUFF800
T719AA1000X100 10" 254mm 11.57" 294mm 0.315" 8mm 150 PSI 30 in Hg 80" 15.70 lbs/ft ALFAMUFF1000
T719AA1200X40 12" 305mm 13.94" 354mm 0.354" 9mm 150 PSI 30 in Hg 96" 19.41 lbs/ft ALFAMUFF1200
