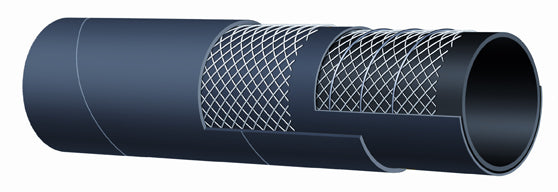

T720AA800X20 Alfagomma by Kuriyama | T720AA Series | Bulk Material Suction & Discharge Hose | 8" ID | 8.70" OD | 75 PSI | Black | 20ft Length

Save $640.90

$1,989.52

$1,989.52 - $1,989.52

$1,989.52

$1,348.62

$1,348.62 - $1,348.62

$1,348.62

Kuriyama of America Inc.
Alfagomma | T720AA Series | Bulk Material Suction & Discharge Hose

For suction and discharge of wet or dry abrasive materials. Designed for grains and dry cement.

Package Quantity: 20 Foot

Specifications for Variant SKU: T720AA800X20 Kuriyama \| 20 \|
Brand:	Alfagomma
Series:	T720AA Series
Hose Color(s):	Black
Internal Diameter:	8in
Outer Diameter:	8.70in
Tubing Construction:	Natural Rubber
Cover Construction:	SBR/NR Blend
Special Properties:	Conductive Tube, Conductive Hose Cover

Application:	For suction and discharge of wet or dry abrasive materials. Designed for grains and dry cement.
Other Ratings:	-	Tube:	3/16" black conductive NR - abrasion resistant.
Reinforcement:	Spiraled high tensile textile cords with flexible steel helix wire.	Cover:	Black conductive SBR/NR blend - abrasion and ozone resistant.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding:	ALFAGOMMA - ITALY T720 - BULK MATERIAL - S & D (in white letters)

Part Number 20ft	Part Number 50ft	Part Number 100ft	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
Part Number 20ft	Part Number 50ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	in Hg	(in)	lbs/ft
-	-	T720AA200X100	2"	51mm	2.56"	65mm	150 PSI	30"	6"	0.97 lbs/ft
-	-	T720AA300X100	3"	76mm	3.54"	90mm	150 PSI	27"	9"	1.54 lbs/ft
-	T720AA400X50	T720AA400X100	4"	102mm	4.57"	116mm	150 PSI	27"	12"	2.15 lbs/ft
T720AA500X20	T720AA500X50	-	5"	127mm	5.63"	143mm	75 PSI	24"	20"	3.20 lbs/ft
T720AA600X20	T720AA600X50	-	6"	152mm	6.61"	168mm	75 PSI	24"	24"	4.01 lbs/ft
T720AA800X20	-	-	8"	203mm	8.70"	221mm	75 PSI	21"	32"	6.05 lbs/ft
