T74SAA400X100 Alfagomma by Kuriyama | Conqueror™ T74SAA Series | Construction Duty Concrete Pumping Hose | 4" ID | 5.04" OD | 1275 PSI | Black | 100ft Length

Save $940.73

$4,235.90

$4,235.90 - $4,235.90

$4,235.90

$3,295.17

$3,295.17 - $3,295.17

$3,295.17

Kuriyama of America Inc.
Alfagomma | Conqueror™ T74SAA Series | Construction Duty Textile Reinforced Concrete Pumping Hose

Easy-handling, textile-reinforced construction for use on trailer mounted line pumps where longer hose lengths are required.

Package Quantity: 100 Foot

Specifications for Variant SKU: T74SAA400X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	Conqueror Series, T74SAA Series
Hose Color(s):	Black
Internal Diameter:	4in
Outer Diameter:	5.04in
Tubing Construction:	Natural Rubber
Cover Construction:	SBR/Nitrile Blend
Special Properties:	Conductive Tube, Conductive Hose Cover

Other Features:
Applications:	For use on trailer mounted line pumps where longer hose lengths are required.
Other Ratings:	-	Tube:	Black conductive NR - abrasion resistant.

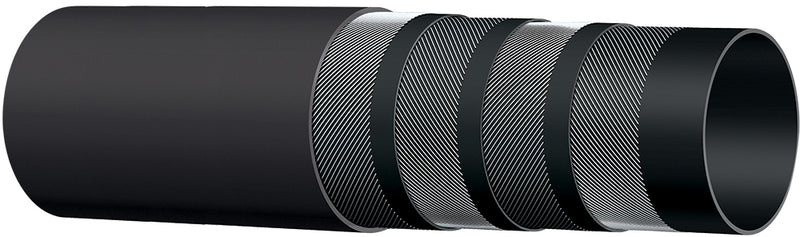

Reinforcement:	High tensile textile cords.	Cover:	Black conductive SBR/NR blend - abrasion and ozone resistant.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	CHC-CA Series "California Style" couplings
Branding:	ALFAGOMMA - ITALY T74S 85 BAR (1275 PSI) W. P. HEAVY DUTY CONCRETE PUMPING (in yellow letters)
Heavy Duty Construction - Durable, thick walled construction, resists kinking, elongation and vibration during operation. All sizes rated to working pressure of 1275 PSI with 2:1 safety factor. Textile Yarn Reinforcement - Operator friendly, lighter weight versus wire reinforced hoses for easier handling while still providing extended service life in heavy-duty applications. Abrasion Resistant Tube and Cover - The NR (natural rubber) tube resists the wear caused by the flow of abrasive concrete. The SBR/NR blend cover resists the wear caused by dragging over rough surfaces, as well as environmental (UV/ozone) damage. Cold Flex Materials - Hose remains flexible in sub-zero temperatures.

Part Number 50ft	Part Number 100ft	ID		OD		Wall Thickness	Max Rec. Working Pressure	Min. Bend Radius at 68°F	Weight
Part Number 50ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	(mm)	PSI	(in)	lbs/ft
-	T74SAA200X100	2"	51mm	2.80"	71mm	10mm	1275 PSI	10"	1.45 lbs/ft
-	T74SAA250X100	2-1/2"	63mm	3.27"	83mm	10mm	1275 PSI	10-1/2"	1.78 lbs/ft
T74SAA300X50	T74SAA300X100	3"	76mm	3.97"	101mm	12mm	1275 PSI	15"	2.46 lbs/ft
-	T74SAA350X100	3-1/2"	90mm	4.57"	116mm	13mm	1275 PSI	17-1/2"	2.87 lbs/ft
-	T74SAA400X100	4"	102mm	5.04"	128mm	13mm	1275 PSI	20"	3.34 lbs
