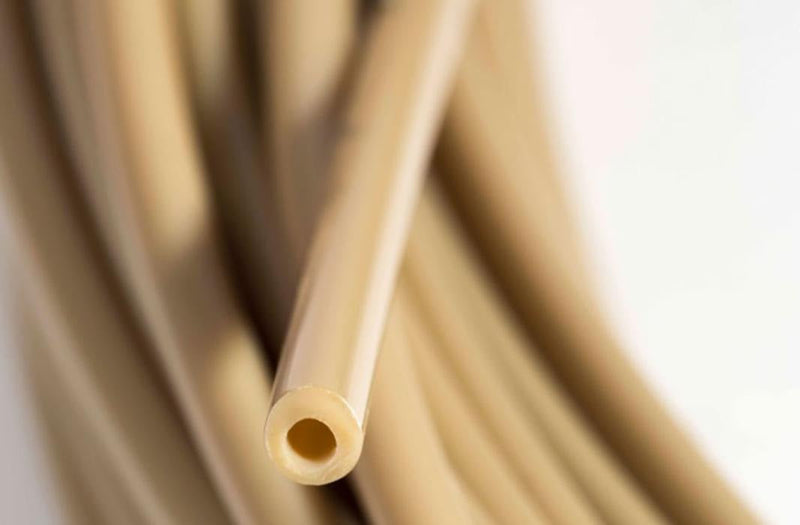

TSPK38-0062-026 Versilon™ by Saint Gobain | PEEK® Capillary Tubing | 0.010" ID x 0.062" OD x .026" Wall | 250' Package Length

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Saint Gobain
Versilon® PEEK | Capillary Tubing

Versilon® PEEK flexible, capillary tubing is designed specifically for the demands of high-pressure chromatography (HPLC).

No by the foot sales. This is a Packaged Length product.

Specifications for Variant SKU: TSPK38-0062-026 Saint Gobain \| 250 \|
Brand:	Versilon
Series:	PEEK
Hose Color(s):	Beige
Internal Diameter:	0.01in
Outer Diameter:	0.062in
Tubing Construction:	Polyetheretherketone
Applicable Specs & Approvals:	Applicable FDA Requirements

Fluoropolymer Flexible Tubing

Versilon® PEEK | Capillary Tubing

Versilon® PEEK capillary tubing is designed specifically to meet the demands of high performance liquid chromatography (HPLC) applications. It is more corrosion resistant than stainless steel and has the structural integrity to withstand high pressures at elevated temperatures. Highly chemically resistant, Versilon® PEEK has extremely low extractables and is unaffected by continuous exposure to steam.

1

What is this product used for?

Liquid chromatography
Semiconductor
Laboratory

2

What are the key specifications?

Tube

N/A

Cover

N/A

Reinforcement

None

Colors

Tan

Continuous Service Temperature °F

480°F

Minimum Recommended Operating Temp. °F (°C)

N/A

Specifications

Flame retardant (UL 94 V-O)

WARNING:

Not intended as an implant material!

3

What are the main product features?

Excellent chemical resistance.
Abrasion resistance.
High strength.
Dimensionally stable.

4

Which sizes or configurations are available?

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Max. Working Pressure* at 73°F (23°C) PSI	Max. Working Pressure* at 392°F (200°C) PSI	Length
TSPK38-0062-026	0.010"	0.062"	0.026"	3337 PSI	860 PSI	250ft
TSPK38-0062-021	0.020"	0.062"	0.021"	2853 PSI	735 PSI	250ft
TSPK38-0062-016	0.030"	0.062"	0.016"	2182 PSI	562 PSI	250ft
TSPK38-0062-011	0.040"	0.062"	0.011"	1449 PSI	373 PSI	250ft
TSPK38-0125-031	0.062"	0.125"	0.032"	2127 PSI	548 PSI	250ft
TSPK38-0125-023	0.080"	0.125"	0.023"	1427 PSI	379 PSI	250ft

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?

PDF

Saint Gobain Versilon® PEEK Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
