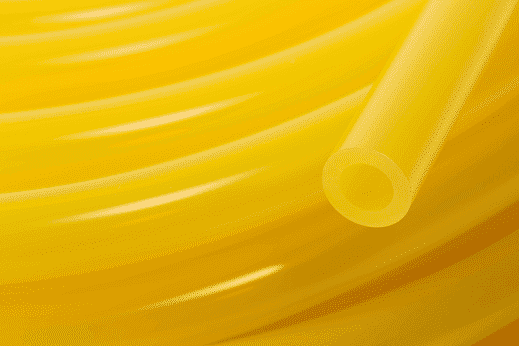

Tygon® AAG00012 3/16" I.D. x 5/16" O.D. x 1/16" Wall (F-4040-A) 50' Package Length - Fuel and Lubricant Tubing

AAG00012 Tygon® by Saint Gobain | 3/16" I.D. x 5/16" O.D. x 1/16" Wall | F-4040-A | Fuel and Lubricant Tubing | 50' Package Length

Save $6.67 Save $6.67
$66.66
$66.66 - $66.66
$66.66
$59.99
$59.99 - $59.99
$59.99

Saint Gobain - Tygon® Fuel and Lubricant Tubing - Formulation F-4040-A

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: AAG00012 Saint Gobain
Brand: Tygon
Series: F-4040-A
Hose Color(s): Yellow
Internal Diameter: 0.1875in
Outer Diameter: 0.3125in
Tubing Construction: PVC

SPECIFICATIONS

Application: Small Engine Fuel Lines, General Automotive, Recreational Vehicles, Lawn and Garden Equipment, Coolant Transfer, Heating Fuels, Cutting Compounds, Polishing Equipment, Lubrication Lines SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -35 deg. F (-37 deg. C) - 403 deg. F (15.8 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Literature: Tygon® Fuel and Lubricant Tubing - Formulation F-4040-A (PDF)
Other Features:
  • Resists embrittlement
  • Compatible with most hydrocarbons
  • Resistant to swelling
  • Highly flexible, easy to install
  • Specifically developed for fuels and lubricants
  • Ozone and UV Light Resistant

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
AAG00700 .080" .140" .030" 1/4" 40 PSI 29.9 in. Hg 50ft
AAG00165 3/32" 3/16" 3/64" 1/4" 50 PSI 29.9 in. Hg 50ft
AAG00007 1/8" 1/4" 1/16" 3/8" 50 PSI 29.9 in. Hg 50ft
AAG00012 3/16" 5/16" 1/16" 5/8" 35 PSI 29.9 in. Hg 50ft
AAG00017 1/4" 3/8" 1/16" 1" 30 PSI 22.0 in. Hg 50ft
AAG00022 5/16" 7/16" 1/16" 1-3/8" 25 PSI 14.0 in. Hg 50ft
AAG00027 3/8" 1/2" 1/16" 1-7/8" 20 PSI 10.0 in. Hg 50ft
AAG00029 3/8" 5/8" 1/8" 1-1/8" 35 PSI 29.9 in. Hg 50ft
AAG00032 7/16" 9/16" 1/16" 2-3/8" 15 PSI 7.0 in. Hg 50ft
AAG00036 1/2" 5/8" 1/16" 2-7/8" 15 PSI 5.0 in. Hg 50ft
AAG00038 1/2" 3/4" 1/8" 1-3/4" 30 PSI 22.0 in. Hg 50ft
AAG00046 5/8" 7/8" 1/8" 2-1/2" 25 PSI 14.0 in. Hg 50ft
AAG00053 3/4" 1" 1/8" 3-1/4" 20 PSI 10.0 in. Hg 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
