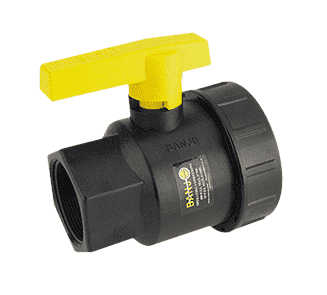

UV075FP Banjo Polypropylene Spinweld Single Union Ball Valve - 3/4" Female NPT x 3/4" Female NPT - 3/4" Opening Thru Ball - 100 PSI

UV075FP by Banjo | Spinweld Single Union Ball Valve | 3/4" Female NPT x 3/4" Female NPT | 3/4" Opening Thru Ball | 300 PSI | Polypropylene | Pack of 10

Save $23.85

$160.52

$160.52 - $160.52

$160.52

$136.67

$136.67 - $136.67

$136.67

Banjo Valves
Single Union Ball Valves - Spinweld Valves - Polypropylene

Package Quantity: 10 EA

Specifications for Variant SKU: UV075FP Banjo \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s):	Polypropylene
Seal Material(s):	EPDM

Applications:
Fluids
Features:
Precision molded in glass reinforced polypropylene, for strength and chemical resistance PTFE seats for smooth operation and proper sealing characteristics Double O-rings in stem area for extra sealing protection Interlocking body and end plate to allow easy thread connection when installing

Part Number	End Type	Opening Thru Ball	Stem O-Ring	Max PSI
UV050FP	1/2" Female NPT x 1/2" Female NPT	3/4"	EPDM	300 PSI
UV075FP	3/4" Female NPT x 3/4" Female NPT	3/4"	EPDM	300 PSI
UV100FP	1" Female NPT x 1" Female NPT	1"	EPDM	300 PSI
UV125FP	1-1/4" Female NPT x 1-1/4" Female NPT	1-1/2"	EPDM	225 PSI
UV150FP	1-1/2" Female NPT x 1-1/2" Female NPT	1-1/2"	EPDM	200 PSI
UV200FP	2" Female NPT x 2" Female NPT	2"	EPDM	300 PSI

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
