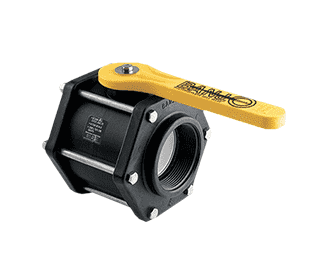

V400 by Banjo | 6 Bolt Ball Valve | Standard Port | 4" Female NPT x 4" Female NPT | Opening Thru Ball: 4" | 100 PSI | Polypropylene
V400 by Banjo | 6 Bolt Ball Valve | Standard Port | 4" Female NPT x 4" Female NPT | Opening Thru Ball: 4" | 100 PSI | Polypropylene
V400 by Banjo | 6 Bolt Ball Valve | Standard Port | 4" Female NPT x 4" Female NPT | Opening Thru Ball: 4" | 100 PSI | Polypropylene
V400 by Banjo | 6 Bolt Ball Valve | Standard Port | 4" Female NPT x 4" Female NPT | Opening Thru Ball: 4" | 100 PSI | Polypropylene
V400 by Banjo | 6 Bolt Ball Valve | Standard Port | 4" Female NPT x 4" Female NPT | Opening Thru Ball: 4" | 100 PSI | Polypropylene
V400 by Banjo | 6 Bolt Ball Valve | Standard Port | 4" Female NPT x 4" Female NPT | Opening Thru Ball: 4" | 100 PSI | Polypropylene

V400 by Banjo | 6 Bolt Ball Valve | Standard Port | 4" Female NPT x 4" Female NPT | Opening Thru Ball: 4" | 100 PSI | Polypropylene

Save $54.09 Save $54.09
$343.34
$343.34 - $343.34
$343.34
$289.25
$289.25 - $289.25
$289.25

Banjo Valves - Bolted Ball Valves - 6 Bolt Valves - Polypropylene - Female NPT x Female NPT
Specifications for Variant SKU: V400 Banjo
Shape (Orientation): Straight
Ends Configuration: 4in Female NPT, 4in Female NPT, Some Ends Match
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • FKM (viton type) seals
  • Precision molded polypropylene is reinforced with fiberglass for additional strength
  • Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • PTFE self-lubricating stem bush ings and seats cannot stick or bind
  • Stainless steel bolts
Other Components:
  • 6 Bolt Valve Accessories
Part Number Port Type End Type Opening Thru Ball Max PSI Pkg Qty Dimensions
A B C D E
6 Bolt Valves
V200FP Full Port 2" Female NPT x 2" Female NPT 2" 225 1 3.25" 2.38" 5.44" 9.25" 5.50"
V300 Standard Port 3" Female NPT x 3" Female NPT 2-1/2" 225 1 3.53" 2.69" 6.28" 9.25" 6.06"
V300FP Full Port 3" Female NPT x 3" Female NPT 3" 200 1 4.25" 3.25" 7.35" 9.25" 6.40"
V400 Standard Port 4" Female NPT x 4" Female NPT 3-1/2" 100 1 4.50" 3.60" 8.19" 9.25" 7.88"
6 Bolt Valves w/"F" Adapter
VFMT200FP Full Port w/ "F" Adapter 2" Male Adapter x 2" Male NPT 2" 225 1 3.38" 2.38" 5.44" 9.25" 8.30"
Replacement Parts for V200FP, VFMT200FP, VFMT200FPSH, V300, V300FP, V400
Item Part Number Description Quantity Required
1 V30151 Stem (new style for V300,V300FP & V400) 1
2 V25153 Handle 1
Not Shown VRH220K Removable Handle Kit 1
Not Shown VL25153 Locking Handle 1
8 V25160* Upper Stem Bushing 1
9 V25060* Thrust Washer 1
11 A108V 1/4" SS Lock Washer 4
12 V20019 3/8" 16 SS Hex Nut 4
15 V25163* FKM (viton type) Stem O-Ring 1
Not Shown V25271 90° Mounting Bracket Fits V200FP, V300, V300FP, V400, VFMT200FP & VFMT200FPSH 1
Not Shown V25270 Straight Mounting Bracket Fits V200FP, V300, V300FP, V400, VFMT200FP & VFMT200FPSH< 1
Replacement Parts for V200FP, VFMT200FP, VFMT200FPSH
Item Part Number Description Quantity Required
2 V25153SH Short Handle for VFMT200FPSH 1
3 V25254 Valve Body 1
4 V25255A* Valve Ball 1
5 V25256 2" End Plate Female NPT 2
5 VMT25256 2" End Plate Male NPT 1
6 V25258A* Ball Seat 2
7 V25264* FKM (viton type) Valve Body O-Ring 2
10 V25017 3.8" x 4." SS Body Bolt 6

*Valve Repair Kit contains these items
