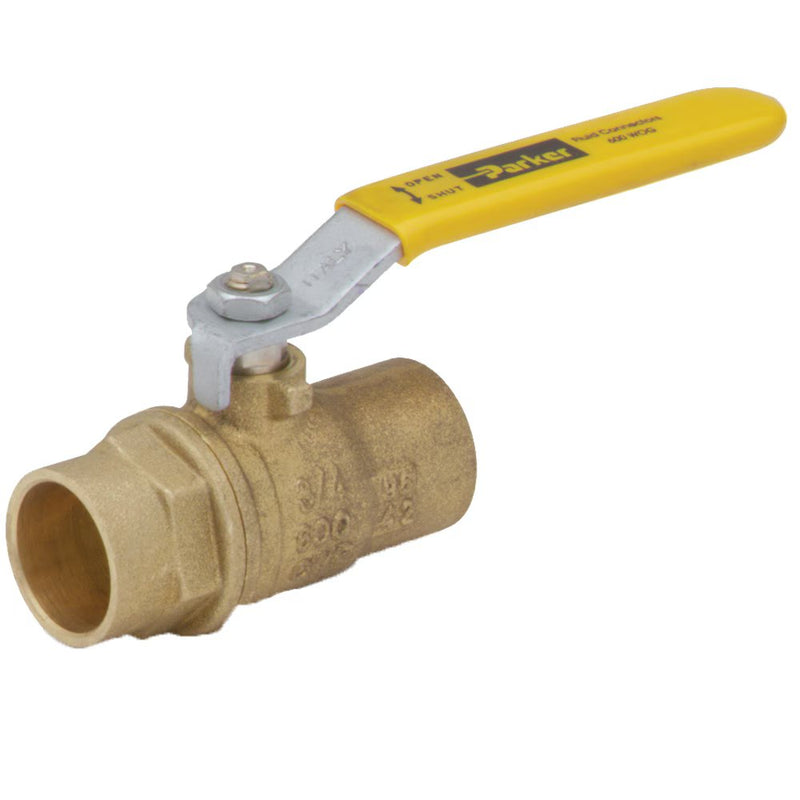

V509P-8 by Parker | Ball Valves | 1/2" Solder End | 5.00" Length | Straight | Brass | Pack of 40

Save $61.81

$756.21

$756.21 - $756.21

$756.21

$694.40

$694.40 - $694.40

$694.40

by Parker Hannifin
Ball Valves Brass Series 509:Solder Cup Ends V509P

Package Quantity: 40 Units

Quantity

Specifications for Variant SKU: V509P-8 Parker \| 40 \|
Series:	V509P Series
Shape (Orientation):	Straight
Material(s):	Brass, Chrome-Plated Brass, Steel
Seal Material(s):	PTFE
Special Properties:	Valved

Nylon: 0° to +350° F (-17.7° to +176.6° C)
Solder temperature not to exceed 470° F (243.3° C)

Specification:
Product Features:	Forged brass body Chrome plated brass ball PTFE seats/seals Steel handle
Style:	V-Valve
Type:	509-Solder Ends
Material:	P-Brass
Temperature Range:
Pressure Range:	600 WOG , Cold Non-shock Saturated Steam up to 150 PSI (10.3 bar)


Part Number	Tube Size	E	G	H	L	M	N	Flow Diameter (D)
V509P-8	1/2"	.630"	.49"	3.94"	5.00"	2.24"	1.69"	.55"
V509P-12	3/4"	.877"	.75"	4.72"	6.10"	2.85"	1.97"	.75"
V509P-16	1"	1.128"	.90"	4.72"	6.40"	3.35"	2.13"	.94"
V509P-2	1-1/4"	1.378"	.96"	6.22"	8.13"	3.82"	3.01"	1.18"
V509P-24	1-1/2"	1.628"	1.10"	6.22"	8.46"	4.49"	3.25"	1.50"
V509P-32	2"	2.128"	1.34"	6.22"	8.94"	5.43"	3.52"	1.89"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
