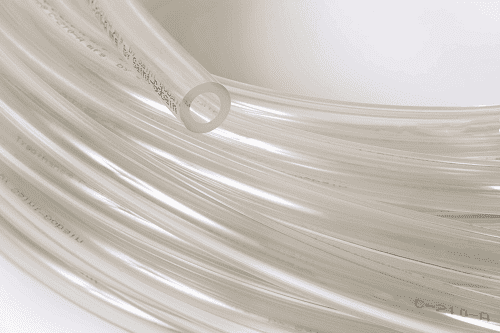

Versilon™ AEM02062 1" I.D. x 1-1/4" O.D. x 1/8" Wall (C-210-A) 100' Package Length - Precision Polyurethane Tubing

AEM02062 Versilon™ by Saint Gobain | 1" I.D. x 1-1/4" O.D. x 1/8" Wall | C-210-A | Precision Polyurethane Tubing | 100' Package Length

Save $57.66 Save $57.66
$576.61
$576.61 - $576.61
$576.61
$518.95
$518.95 - $518.95
$518.95

Saint Gobain - Versilon™ Precision Polyurethane Tubing - Formulation C-210-A

No by the foot sales. This is a Packaged Length product.

Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: AEM02062 Saint Gobain
Brand: Versilon
Series: C-210-A
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1in
Outer Diameter: 0.75in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, FDA 21 CFR Part 177.1680, FDA 21 CFR Part 177.2600

SPECIFICATIONS

Application: Food and Cosmetic Processing, Abrasive and Viscous Slurry Transfer, Lubrication and Degreaser Dispensing, Pellet and Powder Transfer, Pneumatic Sensory Devices, Instrumentation Control Lines, Coolant Recovery Systems SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: N/A Cover: N/A
Temperature Range: -100 deg. F (-73 deg. C) - Prolonged:175 deg. F (79 deg. C) Intermittent: 200 deg. F (-93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR, 177.1680 and 177.2600
Literature: Versilon™ Precision Polyurethane Tubing - Formulation C-210-A (PDF)
Other Features:
    • Consistently tight dimensional tolerances
    • Excellent abrasion and tear resistance
    • Excellent resistance to oils, greases and fuels
    • Retains flexibility in sub-zero environments
    • High tear resistance
    • Meets FDA Criteria
    • WARNING: Versilon™ Precision Polyurethane Tubing - Formulation C-210-A is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Max. Suggested Working Pressure at 175 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Vacuum Rating at 175 deg. F (in. Hg) Length
AEM02002 1/16" 1/8" 1/32" 3/16" 70 PSI 40 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02006 1/8" 3/16" 1/32" 1/2" 45 PSI 25 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02007 1/8" 1/4" 1/16" 5/16" 74 PSI 45 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02011 3/16" 1/4" 1/32" 1" 34 PSI 19 PSI 29.9 in. Hg 20.0 in. Hg 100ft
AEM02012 3/16" 5/16" 1/16" 5/8" 56 PSI 33 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02013 3/16" 3/8" 3/32" 7/16" 70 PSI 44 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02016 1/4" 5/16" 1/32" 1-9/16" 28 PSI 12 PSI 20.0 in. Hg 5.0 in. Hg 100ft
AEM02017 1/4" 3/8" 1/16" 15/16" 42 PSI 25 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02018 1/4" 7/16" 3/32" 11/16" 58 PSI 28 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02019 1/4" 1/2" 1/8" 9/16" 70 PSI 45 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02022 5/16" 7/16" 1/16" 1-15/16" 36 PSI 22 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02027 3/8" 1/2" 1/16" 1-3/4" 34 PSI 19 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02028 3/8" 9/16" 3/32" 1-5/16" 45 PSI 27 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02029 3/8" 5/8" 1/8" 1-1/16" 54 PSI 33 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02033 7/16" 5/8" 3/32" 1-11/16" 40 PSI 21 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02034 7/16" 11/16" 1/8" 1-3/8" 49 PSI 29 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02036 1/2" 5/8" 1/16" 2-7/8" 26 PSI 14 PSI 20.0 in. Hg 5.0 in. Hg 100ft
AEM02037 1/2" 11/16" 3/32" 2-1/8" 36 PSI 18 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02038 1/2" 3/4" 1/8" 1-3/4" 46 PSI 27 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02044 5/8" 3/4" 1/16" 4-1/8" 24 PSI 11 PSI 10.0 in. Hg 5.0 in. Hg 100ft
AEM02045 5/8" 13/16" 3/32" 3" 32 PSI 16 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02046 5/8" 7/8" 1/8" 2-3/8" 38 PSI 21 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AEM02052 3/4" 15/16" 3/32" 4" 26 PSI 13 PSI 15.0 in. Hg 5.0 in. Hg 100ft
AEM02053 3/4" 1" 1/8" 3-1/4" 33 PSI 20 PSI 29.9 in. Hg 25.0 in. Hg 100ft
AEM02062 1" 1-1/4" 1/8" 5-1/8" 28 PSI 14 PSI 15.0 in. Hg 10.0 in. Hg 100ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
