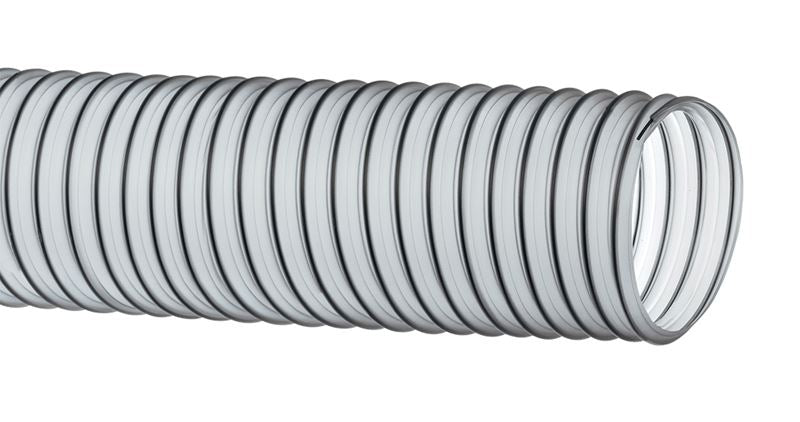

VID-CL800X25 FLEXAIR™ by Kuriyama | Vinylduct™ Clear | VID-CL™ Series | Food Grade PVC Ducting / Material Handling Hose | 8" ID | 8.33" OD | 25ft Length

VID-CL800X25 FLEXAIR™ by Kuriyama | Vinylduct™ Clear | VID-CL™ Series | Food Grade PVC Ducting / Material Handling Hose | 8" ID | 8.33" OD | 25ft Length

Save $404.87 Save $404.87
$613.37
$613.37 - $613.37
$613.37
$208.50
$208.50 - $208.50
$208.50

FLEXAIR™ by Kuriyama
Vinylduct™ Clear | VID-CL™ Series | Food Grade PVC Ducting / Material Handling Hose

Designed for ducting, ventilation, and fume removal, as well as light-duty material handling applications such as dust control, food transfer, and lawn and leaf collection.

Made in the USA.

Package Quantity: 25 Foot

Specifications for Variant SKU: VID-CL800X25 Kuriyama | 25 |
Brand: FLEXAIR
Series: Vinylduct, VID-CL Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 8in
Outer Diameter: 8.33in
Tubing Construction: PVC
Applicable Specs & Approvals: BSE/TSE, Applicable FDA Requirements, RoHS Compliant, UL 94V-0 Flammability Rating
General Applications:
  • Ducting, ventilation & fume removal
  • Dust control
  • Food grade material handling
  • Lawn and leaf collection
  • Material handling - light duty
Construction:
  • 0.025" thick PVC hose with steel wire helix.
Specifications:
  • BSE/TSE
  • FDA(03)
  • Phthalate Free
  • RoHS
  • UL94V-0(07)
Service Temperature Range:
  • -20°F (-29°C) to +180°F (+82°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Steel Wire Helix - Highly durable steel wire provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation.
  • Food Grade Material - Hose compiles with applicable FDA requirements.
  • UL Information - The clear PVC plastic material has been tested and conforms to UL94V-0.
  • Transparent Construction - "See-the-flow". Allows for visual confirmation of material flow.
  • Phthalate Free.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
  • CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
Part Number
25ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Compression
Ratio		 Weight
in mm in mm at 68°F at 68°F in (lbs/ft)
VID-CL200X25 2" 50.8mm 2.23" 56.6mm 28 PSI 29 in Hg 2" 3:1 0.36 lbs/ft
VID-CL250X25 2-1/2" 63.5mm 2.73" 69.3mm 24 PSI 29 in Hg 2" 3:1 0.40 lbs/ft
VID-CL300X25 3" 76.2mm 3.23" 82.0mm 20 PSI 26 in Hg 2.5" 3:1 0.44 lbs/ft
VID-CL400X25 4" 101.6mm 4.28" 108.7mm 18 PSI 22 in Hg 3.5" 3:1 0.62 lbs/ft
VID-CL500X25 5" 127.0mm 5.28" 134.1mm 16 PSI 21 in Hg 4.5" 3:1 0.65 lbs/ft
VID-CL600X25 6" 152.4mm 6.33" 160.8mm 14 PSI 19 in Hg 5.5" 3:1 0.84 lbs/ft
VID-CL800X25 8" 203.2mm 8.33" 211.6mm 10 PSI 14 in Hg 6.5" 3:1 1.40 lbs/ft
VID-CL1000X25 10" 255.0mm 10.33" 262.4mm 9 PSI 6 in Hg 7" 4:1 1.93 lbs/ft
VID-CL1200X25 12" 304.8mm 12.33" 313.2mm 8 PSI 5 in Hg 8.5" 4:1 2.26 lbs/ft
