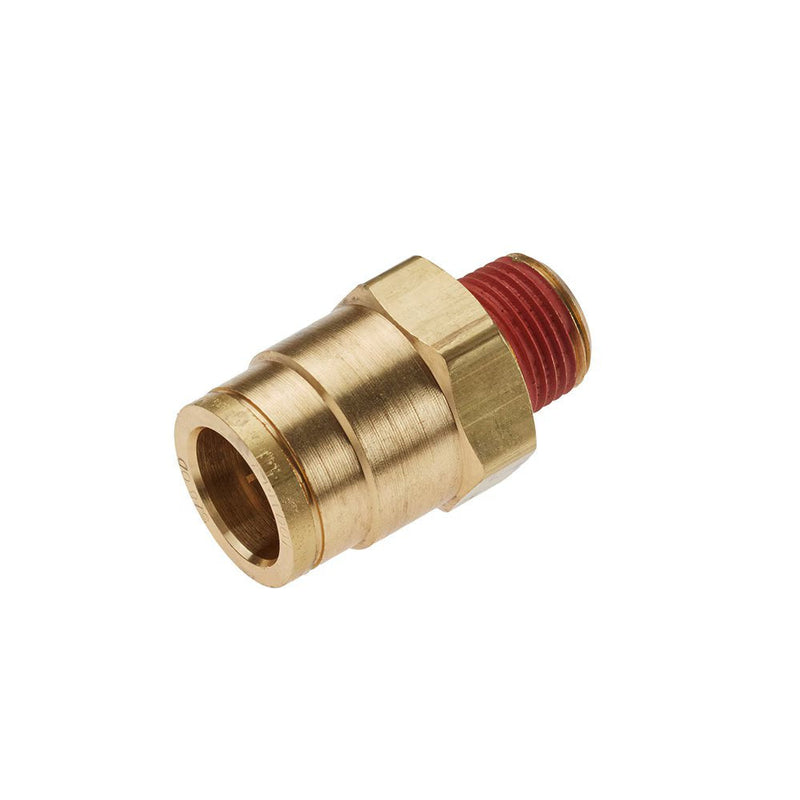

VS68PTC-6-8 by Parker | Air Brake Fitting | 3/8" Push-to-Connect x 1/2" Male NPTF Thread | Straight | Brass

VS68PTC-6-8 by Parker | Air Brake Fitting | 3/8" Push-to-Connect x 1/2" Male NPTF Thread | Straight | Brass

Save $6.20 Save $6.20
$15.28
$15.28 - $15.28
$15.28
$9.08
$9.08 - $9.08
$9.08

by Parker Hannifin
Air Brake Fitting:Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR
Specifications for Variant SKU: VS68PTC-6-8 Parker
Series: VS68PTC Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • D.O.T. quick connect push-in fittings for repairing truck and trailer air brake lines
  • For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
  • Use in secondary air applications such as pneumatic doors for rail, air seats, shock absorbers and in cab instruments
  • Meets performance requirements of D.O.T. FMVSS 571.106, SAE J1131 and SAE J2494-3
  • Stainless steel tube support assures maximum flow and performance requirements of SAE J2494-3
  • Composite body - strong, lightweight, compact and impact resistant
  • Composite body can be rotated after assembly to align shaped fittings for proper orientation
  • All threads per SAE J476
  • PTC fittings reduce assembly time over compression style fittings by 90%
  • Quick connect push-in fitting for leak proof tube connections
  • D.O.T. approved air brake fitting for servicing nylon brake and secondary air lines
  • Quick connecting push-in fittings for servicing work by fleets, repair shops and farm implement dealers
Applications:
  • Air brakes
  • Air tanks
  • Air ride
  • Sliders
  • Tire inflation
  • Primary & secondary air lines
  • Cab controls
Part Number Connection 1 Size Connection 2 Size O.D. Weight
VS68PTC-4-2 1/4" 1/8" .015 Kg
VS68PTC-4-4 1/4" 1/4" .021 Kg
VS68PTC-4-6 1/4" 3/8" .031 Kg
VS68PTC-6-2 3/8" 1/8" .040 Kg
VS68PTC-6-4 3/8" 1/4" .045 Kg
VS68PTC-6-6 3/8" 3/8" .054 Kg
VS68PTC-6-8 3/8" 1/2" .083 Kg
VS68PTC-8-4 1/2" 1/4" .050 Kg
VS68PTC-8-6 1/2" 3/8" .065 Kg
VS68PTC-8-8 1/2" 1/2" .082 Kg
VS68PTC-10-6 5/8" 3/8" .082 Kg
VS68PTC-10-8 5/8" 1/2" .082 Kg
VS68PTC-12-12 3/4" 3/4" .140 Kg
VS68PTC-12-8 3/4" 1/2" .116 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
