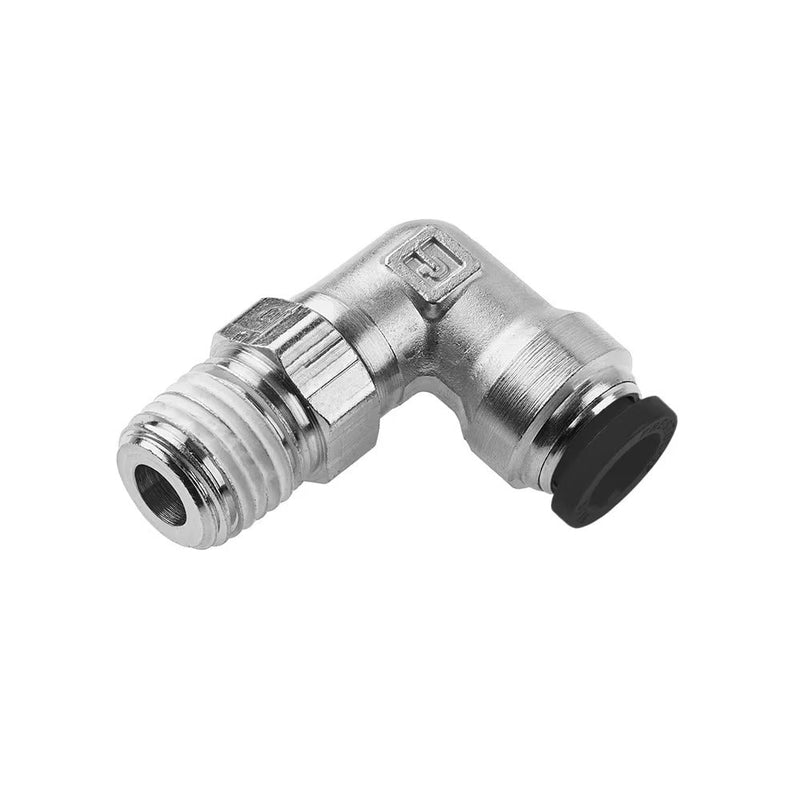

W169PLP-3-2 by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fittings | 3/16" Swivel x 1/8" Male NPTF Thread | 7/16" Hex | .82" Length (L) | .92" Length (N) | .156" Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

W169PLP-3-2 by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fittings | 3/16" Swivel x 1/8" Male NPTF Thread | 7/16" Hex | .82" Length (L) | .92" Length (N) | .156" Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $41.03 Save $41.03
$102.57
$102.57 - $102.57
$102.57
$61.54
$61.54 - $61.54
$61.54

by Parker Hannifin
Push-to-Connect Fittings:W169PLP Male Elbow Swivel 90° – NPTF

Package Quantity: 10 Units

Specifications for Variant SKU: W169PLP-3-2 Parker | 10 |
Series: W169PLP Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button, Swivel
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size Pipe Thread NPTF Hex (C) L N Flow Diameter (D)
W169PLP-2-1 1/8" 1/16" 3/8" .74" .93" .160"
W169PLP-2-2 1/8" 1/8" 7/16" .74" .92" .094"
169PLP-2-0* 1/8" 10-32 3/8" .74" .74" .080"
W169PLP-2-4 1/8" 1/4" 9/16" .74" 1.10" .094"
W169PLP-3-2 3/16" 1/8" 7/16" .82" .92" .156"
W169PLP-5/32-1 5/32" 1/16" 3/8" .84" .93" .160"
W169PLP-5/32-2 5/32" 1/8" 7/16" .77" .92" .125"
W169PLP-5/32-4 5/32" 1/4" 9/16" .77" 1.10" .125"
169PLP-5/32-0* 5/32" 10-32 3/8" .85" .74" .080"
W169PLP-4-1 1/4" 1/16" 3/8" .84" .93" .160"
W169PLP-4-2 1/4" 1/8" 7/16" .85" .92" .156"
W169PLP-4-4 1/4" 1/4" 9/16" .85" 1.10" .156"
W169PLP-4-6 1/4" 3/8" 11/16" .85" 1.19" .156"
169PLP-4-0* 1/4" 10-32 3/8" .85" .74" .080"
W169PLP-5-2 5/16" 1/8" 9/16" .97" 1.02" .250"
W169PLP-5-4 5/16" 1/4" 9/16" .97" 1.24" .250"
W169PLP-6-2 3/8" 1/8" 9/16" 1.01" 1.02" .250"
W169PLP-6-4 3/8" 1/4" 9/16" 1.01" 1.24" .250"
W169PLP-6-6 3/8" 3/8" 11/16" 1.01" 1.24" .250"
W169PLP-6-8 3/8" 1/2" 7/8" 1.01" 1.48" .250"
W169PLP-8-4 1/2" 1/4" 9/16" 1.15" 1.28" .312"
W169PLP-8-6 1/2" 3/8" 11/16" 1.15" 1.31" .312"
W169PLP-8-8 1/2" 1/2" 7/8" 1.15" 1.52" .312"

*10-32 seal is neoprene
