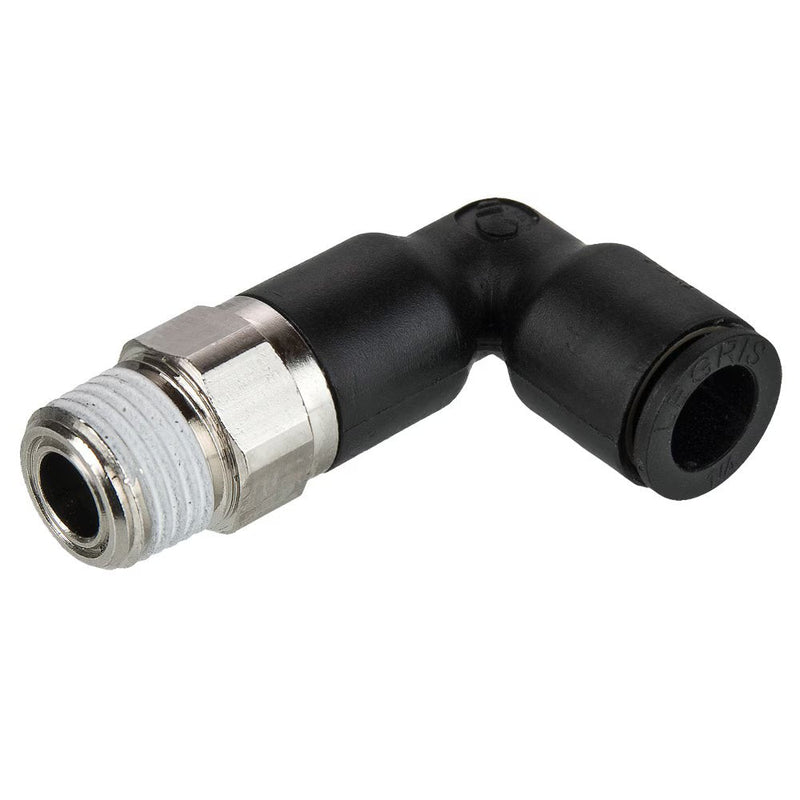

W369PLPX-10M-4R by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 10mm Extended x 1/4" Male BSPT Thread | 15mm Hex | 34.5mm | 90° Long Elbow | Glass-Reinforced Nylon | Pack of 10

W369PLPX-10M-4R by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 10mm Extended x 1/4" Male BSPT Thread | 15mm Hex | 34.5mm | 90° Long Elbow | Glass-Reinforced Nylon | Pack of 10

Save $9.69 Save $9.69
$106.61
$106.61 - $106.61
$106.61
$96.92
$96.92 - $96.92
$96.92

by Parker Hannifin
Push-to-Connect Fittings:W369PLPX Extended Male Elbow - BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: W369PLPX-10M-4R Parker | 10 |
Series: W369PLPX Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Chemical Resistance, Long, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size Thread BSPT Hex (C) H L
W369PLPX-4M-2R 4 mm 1/8" 10 mm 23.0 mm 19.0 mm
W369PLPX-4M-4R 4 mm 1/4" 14 mm 23.5 mm 19.0 mm
W369PLPX-6M-2R 6 mm 1/8" 10 mm 27.0 mm 22.5 mm
W369PLPX-6M-4R 6 mm 1/4" 14 mm 27.5 mm 22.5 mm
W369PLPX-8M-2R 8 mm 1/8" 13 mm 34.5 mm 29.5 mm
W369PLPX-8M-4R 8 mm 1/4" 14 mm 32.5 mm 29.5 mm
W369PLPX-8M-6R 8 mm 3/8" 17 mm 33.0 mm 29.5 mm
W369PLPX-10M-4R 10 mm 1/4" 15 mm 39.5 mm 34.5 mm
W369PLPX-10M-6R 10 mm 3/8" 17 mm 39.5 mm 34.5 mm
W369PLPX-10M-8R 10 mm 1/2" 21 mm 39.5 mm 34.5 mm
W369PLPX-12M-4R 12 mm 1/4" 19 mm 45.5 mm 40.5 mm
W369PLPX-12M-6R 12 mm 3/8" 19 mm 45.5 mm 40.5 mm
W369PLPX-12M-8R 12 mm 1/2" 21 mm 45.5 mm 40.5 mm
W369PLPX-14M-6R 14 mm 3/8" 21 mm 51.5 mm 46.5 mm
W369PLPX-14M-8R 14 mm 1/2" 21 mm 51.5 mm 46.5 mm
