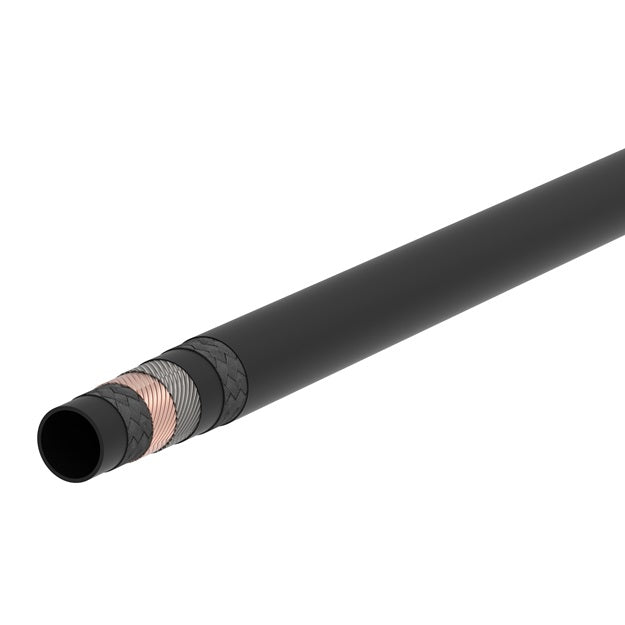

WH004-12 Winner by Danfoss | Suction & Return Hydraulic Hose | SAE 100R4 | 0.75" Hose ID

WH004-12 Winner by Danfoss | Suction & Return Hydraulic Hose | SAE 100R4 | 0.75" Hose ID

$6.81 - $6.81
$6.81
$6.81 - $6.81
$6.81

Winner® by Danfoss
WH004 Series | Suction & Return Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: WH004-12 Danfoss
Brand: Winner
Series: WH004 Series
Hose Color(s): Black
Dash Size: -12
Internal Diameter: 0.75in
Outer Diameter: 1.13in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE 100R4
Hose Properties:
Application: Suitable for use in suction applications for hydraulics, crude fuel, lubricating oils, gasoline, air, water and chemical transfer SAE Rating: Exceeds: SAE 100R4 performance
Other Ratings: MSHA Tube: Oil-resistant NBR
Reinforcement: Textile with helical & anti-static wire Cover: Nitrile
Operating Temperature Range: -40°F to +212°F (-40°C to +100°C)
Part Number Hose ID Nominal Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius Vacuum Service Weight
mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft
WH004-12 19.0mm 0.75" 28,6mm 1.13" 21,0 bar 305 psi 84 bar 1220 psi* 40,0mm 1.57" 94.8 kPa 28 in/Hg 0,54 kg/m 0.36 lbs/ft
WH004-16 25.4mm 1.00" 35,2mm 1.39" 17,0 bar 245 psi 68 bar 980 psi* 45,0mm 1.77" 94.8 kPa 28 in/Hg 0,68 kg/m 0.46 lbs/ft
WH004-20 31.8mm 1.25" 42,0mm 1.65" 14,0 bar 205 psi 56 bar 820 psi* 60,0mm 2.36" 94.8 kPa 28 in/Hg 0,85 kg/m 0.57 lbs/ft
WH004-24 38.1mm 1.50" 49,2mm 1.94" 10,5 bar 150 psi 42 bar 600 psi* 65,0mm 2.56" 94.8 kPa 28 in/Hg 1,20 kg/m 0.81 lbs/ft
WH004-32 50.8mm 2.00" 62,0mm 2.44" 7,0 bar 100 psi 28 bar 400 psi* 100,0mm 3.94" 94.8 kPa 28 in/Hg 1,53 kg/m 1.03 lbs/ft
WH004-40 63.5mm 2.50" 75,5mm 2.97" 4,0 bar 60 psi 16 bar 240 psi* 140,0mm 5.51" 94.8 kPa 28 in/Hg 2,05 kg/m 1.38 lbs/ft
WH004-48 76.2mm 3.00" 88,0mm 3.46" 4,0 bar 60 psi 16 bar 240 psi* 180,0mm 7.09" 94.8 kPa 28 in/Hg 2,62 kg/m 1.76 lbs/ft

* Maximum working pressure for band clamp type fittings is 3,4 bar [50 psi]

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
