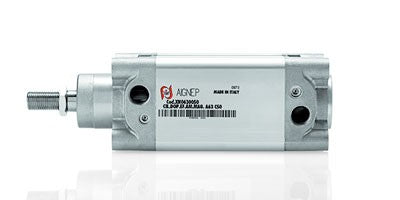

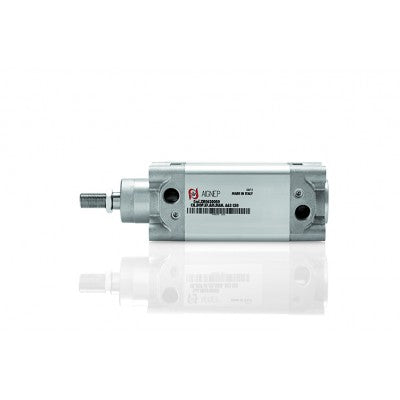

XH0400880 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 40mm Bore x 880mm Stroke

Name: XH0400880 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 40mm Bore x 880mm Stroke
Brand: AIGNEP
SKU: XH0400880 AIGNEP
Price: 159.27 USD
Availability: InStock

Save $106.18

$265.45

$265.45 - $265.45

$265.45

$159.27

$159.27 - $159.27

$159.27

Specifications for Variant SKU: XH0400880 AIGNEP
Series:	ISO 15552/6431 Profile Cylinders Series

DOUBLE ACTING CUSHIONED MAGNETIC

Technical Characteristics:
Temperature:	Min: 32°F (0°C) Max: 176°F (80°C)	Pressure:	1 ÷ 10 bar
Component Parts and Materials:	• Chrome steel C40 piston rod • Zinc-plated steel Nut • Polyurethane Rod Seal or FKM • Aluminium Front cover • Polyurethane Cushioning seals or FKM • Zinc-plated steel Screw cushioning • Aluminium Back cover • Anodised aluminium cylinder shape body • Zinc-plated steel Screw • Sintered bronze Bearing • Polyurethane Piston seals or FKM • Plastoferrite Magnet • Front Aluminium Piston • Support Magnet • Rear Aluminium Piston • O-Ring in NBR or FKM • O-Ring in NBR or FKM

Part Number	Size	Stroke
XH0400010	40 mm	10 mm
XH0400020	40 mm	20 mm
XH0400025	40 mm	25 mm
XH0400030	40 mm	30 mm
XH0400035	40 mm	35 mm
XH0400040	40 mm	40 mm
XH0400045	40 mm	45 mm
XH0400050	40 mm	50 mm
XH0400060	40 mm	60 mm
XH0400065	40 mm	65 mm
XH0400070	40 mm	70 mm
XH0400075	40 mm	75 mm
XH0400080	40 mm	80 mm
XH0400085	40 mm	85 mm
XH0400100	40 mm	100 mm
XH0400125	40 mm	125 mm
XH0400130	40 mm	130 mm
XH0400140	40 mm	140 mm
XH0400150	40 mm	150 mm
XH0400160	40 mm	160 mm
XH0400165	40 mm	165 mm
XH0400170	40 mm	170 mm
XH0400175	40 mm	175 mm
XH0400180	40 mm	180 mm
XH0400185	40 mm	185 mm
XH0400200	40 mm	mm
XH0400210	40 mm	210 mm
XH0400220	40 mm	220 mm
XH0400225	40 mm	225 mm
XH0400230	40 mm	230 mm
XH0400250	40 mm	250 mm
XH0400260	40 mm	260 mm
XH0400300	40 mm	300 mm
XH0400320	40 mm	320 mm
XH0400350	40 mm	350 mm
XH0400360	40 mm	360 mm
XH0400375	40 mm	375 mm
XH0400380	40 mm	380 mm
XH0400400	40 mm	mm
XH0400450	40 mm	450 mm
XH0400460	40 mm	460 mm
XH0400500	40 mm	500 mm
XH0400510	40 mm	510 mm
XH0400550	40 mm	550 mm
XH0400600	40 mm	600 mm
XH0400650	40 mm	650 mm
XH0400700	40 mm	700 mm
XH0400730	40 mm	730 mm
XH0400750	40 mm	750 mm
XH0400770	40 mm	770 mm
XH0400800	40 mm	800 mm
XH0400850	40 mm	850 mm
XH0400880	40 mm	880 mm
XH0400900	40 mm	900 mm
XH0400950	40 mm	950 mm
XH0401000	40 mm	1000 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
