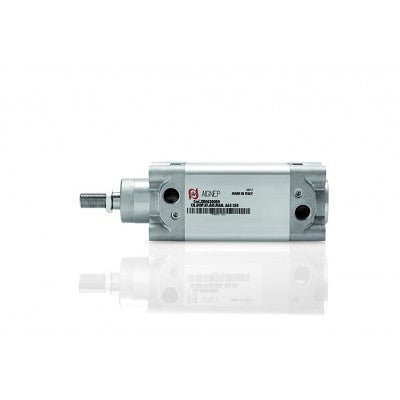

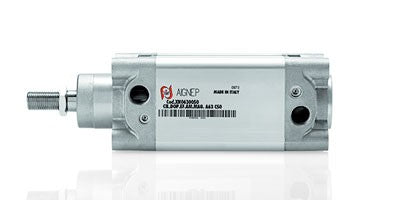

XH0500440 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 50mm Bore x 440mm Stroke

Name: XH0500440 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 50mm Bore x 440mm Stroke
Brand: AIGNEP
SKU: XH0500440 AIGNEP
Price: 136.96 USD
Availability: InStock

Save $1.38

$138.34

$138.34 - $138.34

$138.34

$136.96

$136.96 - $136.96

$136.96

Quantity

Specifications for Variant SKU: XH0500440 AIGNEP
Series:	ISO 15552/6431 Profile Cylinders Series

DOUBLE ACTING CUSHIONED MAGNETIC

Technical Characteristics:
Temperature:	Min: 32°F (0°C) Max: 176°F (80°C)	Pressure:	1 ÷ 10 bar
Component Parts and Materials:	• Chrome steel C40 piston rod • Zinc-plated steel Nut • Polyurethane Rod Seal or FKM • Aluminium Front cover • Polyurethane Cushioning seals or FKM • Zinc-plated steel Screw cushioning • Aluminium Back cover • Anodised aluminium cylinder shape body • Zinc-plated steel Screw • Sintered bronze Bearing • Polyurethane Piston seals or FKM • Plastoferrite Magnet • Front Aluminium Piston • Support Magnet • Rear Aluminium Piston • O-Ring in NBR or FKM • O-Ring in NBR or FKM

Part Number	Size	Stroke
XH0500010	50 mm	10 mm
XH0500015	50 mm	15 mm
XH0500020	50 mm	20 mm
XH0500025	50 mm	25 mm
XH0500030	50 mm	30 mm
XH0500035	50 mm	35 mm
XH0500040	50 mm	40 mm
XH0500050	50 mm	50 mm
XH0500055	50 mm	55 mm
XH0500060	50 mm	60 mm
XH0500070	50 mm	70 mm
XH0500075	50 mm	75 mm
XH0500080	50 mm	80 mm
XH0500090	50 mm	90 mm
XH0500100	50 mm	100 mm
XH0500110	50 mm	110 mm
XH0500120	50 mm	120 mm
XH0500125	50 mm	125 mm
XH0500140	50 mm	140 mm
XH0500150	50 mm	150 mm
XH0500160	50 mm	160 mm
XH0500165	50 mm	165 mm
XH0500175	50 mm	175 mm
XH0500180	50 mm	180 mm
XH0500185	50 mm	185 mm
XH0500200	50 mm	200 mm
XH0500210	50 mm	210 mm
XH0500220	50 mm	220 mm
XH0500225	50 mm	225 mm
XH0500230	50 mm	230 mm
XH0500250	50 mm	250 mm
XH0500260	50 mm	260 mm
XH0500270	50 mm	270 mm
XH0500300	50 mm	300 mm
XH0500320	50 mm	320 mm
XH0500340	50 mm	340 mm
XH0500350	50 mm	350 mm
XH0500360	50 mm	360 mm
XH0500375	50 mm	375 mm
XH0500380	50 mm	380 mm
XH0500390	50 mm	390 mm
XH0500400	50 mm	400 mm
XH0500425	50 mm	425 mm
XH0500440	50 mm	440 mm
XH0500450	50 mm	450 mm
XH0500480	50 mm	480 mm
XH0500500	50 mm	500 mm
XH0500550	50 mm	550 mm
XH0500580	50 mm	580 mm
XH0500590	50 mm	590 mm
XH0500600	50 mm	600 mm
XH0500650	50 mm	650 mm
XH0500700	50 mm	700 mm
XH0500750	50 mm	750 mm
XH0500760	50 mm	760 mm
XH0500770	50 mm	770 mm
XH0500800	50 mm	800 mm
XH0500820	50 mm	820 mm
XH0500850	50 mm	850 mm
XH0500900	50 mm	900 mm
XH0500950	50 mm	950 mm
XH0501000	50 mm	1000 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
