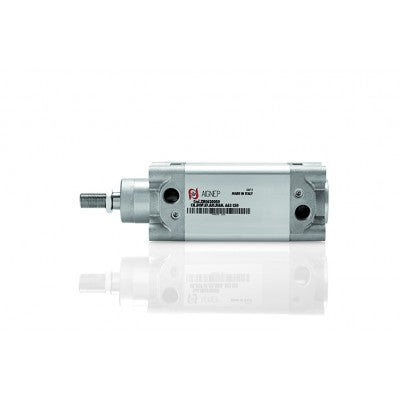

XH1250150 AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 125mm Bore x 150mm Stroke

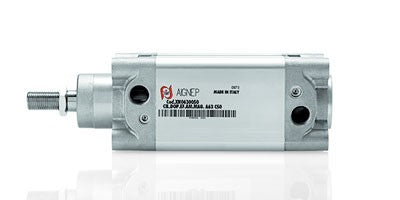

XH1250150 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 125mm Bore x 150mm Stroke
XH1250150 AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 125mm Bore x 150mm Stroke

XH1250150 by AIGNEP | ISO 15552/6431 Profile Cylinders Series | ISO 15552 Double Acting Magnetic Cylinder | 125mm Bore x 150mm Stroke

Save $2.82 Save $2.82
$281.47
$281.47 - $281.47
$281.47
$278.65
$278.65 - $278.65
$278.65
Specifications for Variant SKU: XH1250150 AIGNEP
Series: ISO 15552/6431 Profile Cylinders Series
DOUBLE ACTING CUSHIONED MAGNETIC
Technical Characteristics:
Temperature: Min: 32°F (0°C)
Max: 176°F (80°C)		 Pressure: 1 ÷ 10 bar
Component Parts and Materials: • Chrome steel C40 piston rod
• Zinc-plated steel Nut
• Polyurethane Rod Seal or FKM
• Aluminium Front cover
• Polyurethane Cushioning seals or FKM
• Zinc-plated steel Screw cushioning
• Aluminium Back cover
• Anodised aluminium cylinder shape body
• Zinc-plated steel Screw
• Sintered bronze Bearing
• Polyurethane Piston seals or FKM
• Plastoferrite Magnet
• Front Aluminium Piston
• Support Magnet
• Rear Aluminium Piston
• O-Ring in NBR or FKM
• O-Ring in NBR or FKM
Part Number Size Stroke
XH1250005 125 mm 5 mm
XH1250025 125 mm 25 mm
XH1250050 125 mm 50 mm
XH1250060 125 mm 60 mm
XH1250075 125 mm 75 mm
XH1250080 125 mm 80 mm
XH1250090 125 mm 90 mm
XH1250100 125 mm 100 mm
XH1250125 125 mm 125 mm
XH1250140 125 mm 140 mm
XH1250150 125 mm 150 mm
XH1250160 125 mm 160 mm
XH1250170 125 mm 170 mm
XH1250180 125 mm 180 mm
XH1250190 125 mm 190 mm
XH1250200 125 mm 200 mm
XH1250225 125 mm 225 mm
XH1250250 125 mm 250 mm
XH1250290 125 mm 290 mm
XH1250300 125 mm 300 mm
XH1250320 125 mm 320 mm
XH1250350 125 mm 350 mm
XH1250360 125 mm 360 mm
XH1250400 125 mm 400 mm
XH1250430 125 mm 430 mm
XH1250450 125 mm 450 mm
XH1250500 125 mm 500 mm
XH1250600 125 mm 600 mm
XH1250650 125 mm 650 mm
XH1250700 125 mm 700 mm
XH1250800 125 mm 800 mm
XH1250850 125 mm 850 mm
XH1250900 125 mm 900 mm
XH1251000 125 mm 1000 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
