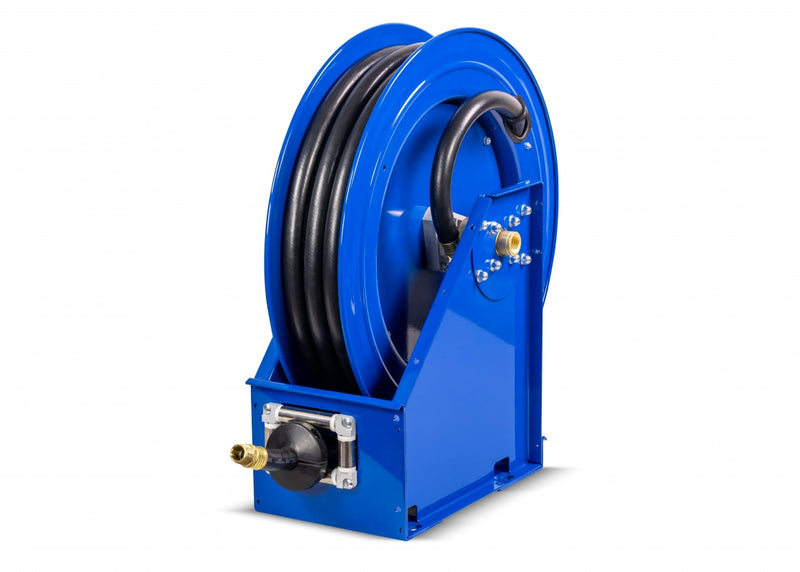

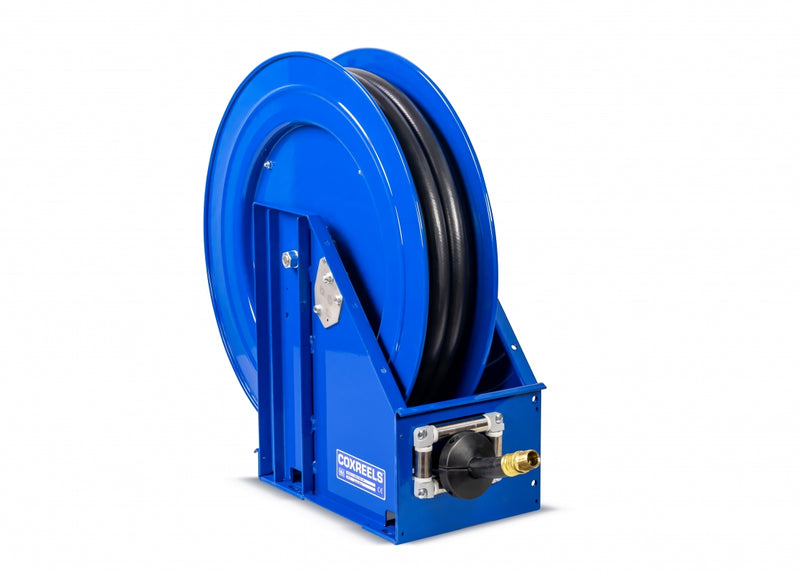

XTM-LP-550-DF-BBX by Coxreels | XTM DEF Series | 300 PSI Spring Driven Hose Reel for DEF | 3/4" Hose ID, 3/4" FNPT Inlet x 3/4" MNPT Hose End | Steel | 50ft EPDM Hose Included

Save $468.83

$1,763.48

$1,763.48 - $1,763.48

$1,763.48

$1,294.65

$1,294.65 - $1,294.65

$1,294.65

This Item has a 3 Week Lead Time.

Specifications for Variant SKU: XTM-LP-550-DF-BBX Cox Reels
Series:	XTM DEF Series
Internal Diameter:	3/4in
Material(s):	Steel, Stainless Steel
Seal Material(s):	FKM

Spring driven hose reel

Coxreels XTM DEF Series Spring Driven Hose Reels

Name: XTM-LP-550-DF-BBX by Coxreels | XTM DEF Series | 300 PSI Spring Driven Hose Reel for DEF | 3/4" Hose ID, 3/4" FNPT Inlet x 3/4" MNPT Hose End | Steel | 50ft EPDM Hose Included
Brand: Coxreels
SKU: XTM-LP-550-DF-BBX Cox Reels
Price: 1294.65 USD
Availability: InStock

Steel box-frame spring driven hose reels for def dispensing, rated to 300 PSI.

1

What is this product used for?

DEF Dispensing

2

What are the key specifications?

Construction

Steel, box-frame

Swivel

Stainless Steel 90° full-flow with Viton seals

Inlet

3/4" FNPT

Max Temperature

250°F

Bearings

1" Permanently Lubricated Precision Bearings

Finish

CPC™ powder coat

Mounting

Bottom, Floor & Wall mount

Reel W × H × L

10.125 × 23.125 × 24 in

3

What are the main product features?

Swivel — Non-corrosive stainless steel 90˚ full-flow NPT swivel for Diesel Exhaust Fluid (DEF) dispensing applications.
Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
Box Frame Construction — Fully welded box frame construction with redundant flanges.Exclusive Super Hub™ triple axle support system.
Stainless Steel Pawl — Accessible stainless steel pawl and pawl spring on ratchet locking mechanism.

4

Which models are available?

Part #	Hose I.D.	Capacity	Max PSI
XTM-LP-550-DF-BBX	3/4"	50 ft	300

6

Which factory options can be ordered?

Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXX. Combinations are confirmed with the quote.

Code	Option
Mounting suffix
-F	Floor mount
-W	Wall mount
-B	Bottom-Truck mount
Color / finish
-GXX	Gray
-KXX	Gloss Black
-RXX	Red
-CXX	Wrinkle Black (25 reel minimum)
-WXX	Gloss White (25 reel minimum)
-NXX	Green (25 reel minimum)

i

Manufactured by Coxreels.

How is this product sold?

Each.
