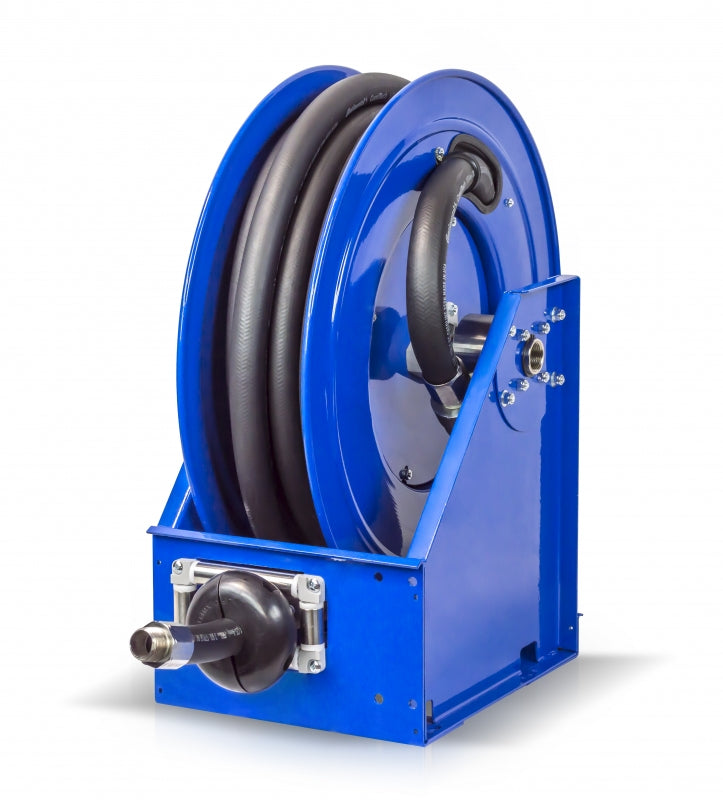

XTMF-LP-550-GS by Coxreels | XTM Fuel Series | 300 PSI Spring Driven Hose Reel for Fuel | 3/4" Hose ID, 3/4" FNPT Inlet x 3/4" MNPT Hose End | Steel | 50; Nitrile/Chemivic Hose Included

Save $461.19

$1,725.92

$1,725.92 - $1,725.92

$1,725.92

$1,264.73

$1,264.73 - $1,264.73

$1,264.73

This Item has a 3 Week Lead Time.

Specifications for Variant SKU: XTMF-LP-550-GS Cox Reels
Series:	XTM Fuel Series
Internal Diameter:	3/4in
Material(s):	Steel, Brass
Seal Material(s):	Nitrile

Spring driven hose reel

Coxreels XTM Fuel Series Spring Driven Hose Reels

Name: XTMF-LP-550-GS by Coxreels | XTM Fuel Series | 300 PSI Spring Driven Hose Reel for Fuel | 3/4" Hose ID, 3/4" FNPT Inlet x 3/4" MNPT Hose End | Steel | 50; Nitrile/Chemivic Hose Included
Brand: Coxreels
SKU: XTMF-LP-550-GS Cox Reels
Price: 1264.73 USD
Availability: InStock

Steel box-frame spring driven hose reels for fuel delivery, rated to 300 PSI.

1

What is this product used for?

Fuel Delivery

2

What are the key specifications?

Construction & Finish

Steel, box-frame
CPC™ powder coat

Swivel

Brass 90° full-flow with Nitrile seals

Inlet

Female NPT, same size as the hose I.D.

Max Temperature

190°F

Bearings

1" Permanently Lubricated Precision Bearings

Mounting

Bottom, Floor & Wall mount

3

What are the main product features?

Swivel — Machined from solid brass 90° full-flow NPT swivel for fuel dispensing applications.
Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
Box Frame Construction — Fully welded box frame construction with redundant flanges.Exclusive Super Hub™ triple axle support system.
Stainless Steel Pawl — Accessible stainless steel pawl and pawl spring on ratchet locking mechanism.

4

Which models are available?

Part #	Hose I.D.	Capacity	Max PSI	Hose	Reel W × H × L (in)
XTMF-LP-550	3/4"	50 ft	300	Nitrile Synthetic Rubber, RMA Class A	10.125 × 23.125 × 24
XTMF-LP-550-GS	3/4"	50;	300	Nitrile/Chemivic, Braided Syn Yarn, Static Wire	10.125 × 23.125 × 24
XTMF-LP-575	3/4"	75 ft	300	Nitrile Synthetic Rubber, RMA Class A	12.75 × 23.125 × 24
XTMF-LP-650	1"	50 ft	300	Nitrile Synthetic Rubber, RMA Class A	12.75 × 23.125 × 24
XTMF-LP-650-GS	1"	50 ft	300	Nitrile/Chemivic, Braided Syn Yarn, Static Wire	12.75 × 23.125 × 24

6

Which factory options can be ordered?

Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXX. Combinations are confirmed with the quote.

Code	Option
Mounting suffix
-F	Floor mount
-W	Wall mount
-B	Bottom-Truck mount
Color / finish
-GXX	Gray
-KXX	Gloss Black
-RXX	Red
-CXX	Wrinkle Black (25 reel minimum)
-WXX	Gloss White (25 reel minimum)
-NXX	Green (25 reel minimum)

i

Manufactured by Coxreels.

How is this product sold?

Each.

⚠ WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Chromium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Cox Reels

Family-owned for over 90 years and now in its third generation, Coxreels builds American-made hose, cord, and cable reels using in-house engineering, CNC machining, and robotic welding. Known for quality, durability, and the industry's widest variety, it's a reel line we trust and proudly carry for commercial and industrial use, backed by USA-based support.
