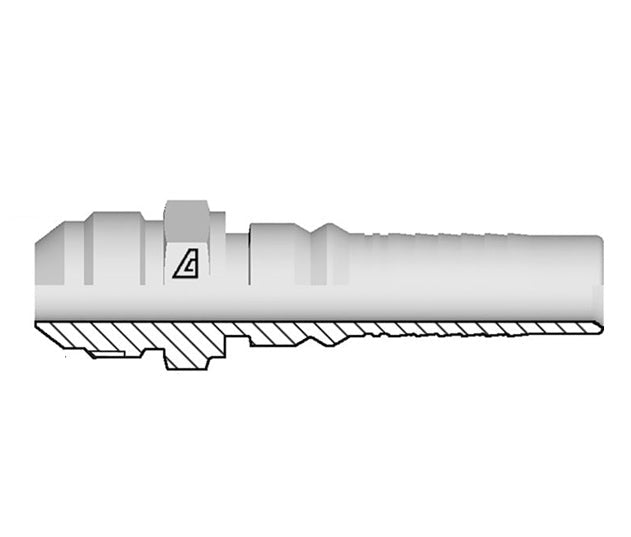

Y-0808-MJIC Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Male JIC 37° Interlock x -08 Hose ID | Steel

Name: Y-0808-MJIC Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Male JIC 37° Interlock x -08 Hose ID | Steel
Brand: Kuriyama
SKU: Y-0808-MJIC Kuriyama
Price: 8.79 USD
Availability: InStock

Save $3.52

$12.31

$12.31 - $12.31

$12.31

$8.79

$8.79 - $8.79

$8.79

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Male JIC 37° Interlock x Hose Barb

Specifications for Variant SKU: Y-0808-MJIC Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male JIC, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	lbs/each
Y-0808-MJIC	-08	1/2"	12.7mm	-08	3/4-16	28.0mm	19mm	0.34 lbs
Y-1212-MJIC	-12	3/4"	19.0mm	-12	1-1/16-12	37.0mm	32mm	0.40 lbs
Y-1616-MJIC	-16	1"	25.4mm	-16	1-5/16-12	41.0mm	36mm	0.63 lbs
Y-2020-MJIC	-20	1-1/4"	31.8mm	-20	1-5/8-12	45.7mm	46mm	1.06 lbs
Y-2424-MJIC	-24	1-1/2"	38.1mm	-24	1-7/8-12	50.0mm	50mm	1.42 lbs
Y-3232-MJIC	-32	2"	50.8mm	-32	2-1/2-12	58.9mm	65mm	1.76 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
