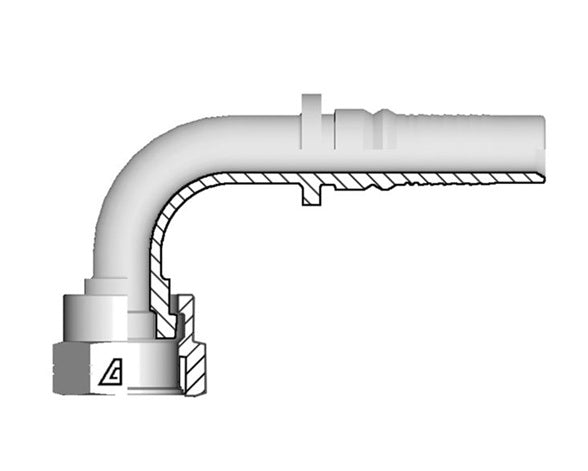

Y-1212-FO9M Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -12 Female ORFS Interlock x -12 Hose ID | Steel

Save $11.65

$40.77

$40.77 - $40.77

$40.77

$29.12

$29.12 - $29.12

$29.12

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Female ORFS x Hose Barb

Specifications for Variant SKU: Y-1212-FO9M Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size(in) - TPI	mm	mm	mm	lbs/each
Y-1212-FO9M	-12	3/4"	19.0mm	-12	1-3/16-12	64.2mm	58mm	36mm	0.84 lbs
Y-1616-FO9M	-16	1"	25.4mm	-16	1-7/16-12	75.2mm	66mm	41mm	1.18 lbs
Y-2020-FO9M	-20	1-1/4"	31.8mm	-20	1-11/16-12	91.7mm	81mm	50mm	1.89 lbs
Y-2424-FO9M	-24	1-1/2"	38.1mm	-24	2-12	99.0mm	84mm	60mm	2.55 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
