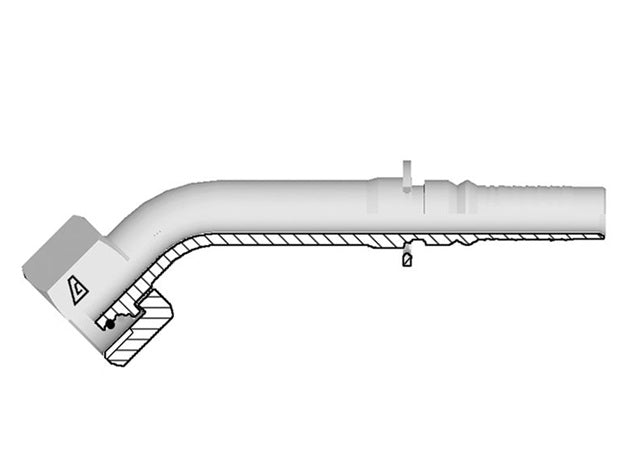

Y-1236-FM4H Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Heavy | M36 Female Metric O-Ring Swivel x -12 Hose ID | Steel

Y-1236-FM4H Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Heavy | M36 Female Metric O-Ring Swivel x -12 Hose ID | Steel

Save $13.38 Save $13.38
$46.83
$46.83 - $46.83
$46.83
$33.45
$33.45 - $33.45
$33.45

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Female Metric O-Ring Swivel x Hose Barb

DIN 3865 Heavy
Specifications for Variant SKU: Y-1236-FM4H Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): 45 Degree
Material(s): Steel
Compatible with the following Series: E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   E4K Series  |   E5.5K Series
Part Number Hose ID Size F Thread Tube OD C
Cut-Off
Factor		 D
Drop		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm (mm) x TP (mm) mm mm mm mm lbs/each
Y-1030-FM4H -10 5/8" 25.9mm M30x2 20mm 59.0mm 31.5mm 36mm 0.58 lbs
Y-1230-FM4H -12 3/4" 19.0mm M30x2 20mm 74.0mm 33mm 36mm 0.79 lbs
Y-1236-FM4H -12 3/4" 19.0mm M36x2 25mm 78.1mm 36.0mm 46mm 1.07 lbs
Y-1636-FM4H -16 1" 25.4mm M36x2 25mm 86.5mm 37.5mm 46mm 1.36 lbs
Y-1642-FM4H -16 1" 25.4mm M42x2 30mm 96.8mm 38.0mm 50mm 1.59 lbs
Y-2052-FM4H -20 1-1/4" 38.1mm M52x2 38mm 113.0mm 48.0mm 60mm 2.59 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
