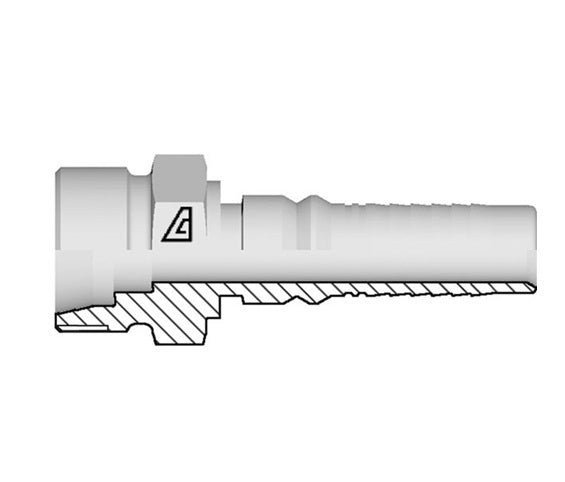

Y-2052-MMSH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | M52 Male Metric 24° Seat Interlock x -20 Hose ID | Steel

Name: Y-2052-MMSH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | M52 Male Metric 24° Seat Interlock x -20 Hose ID | Steel
Brand: Kuriyama
SKU: Y-2052-MMSH Kuriyama
Price: 48.6 USD
Availability: InStock

Save $19.44

$68.04

$68.04 - $68.04

$68.04

$48.60

$48.60 - $48.60

$48.60

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Male Metric 24° Seat Interlock x Hose Barb

DIN 3861 Heavy

Specifications for Variant SKU: Y-2052-MMSH Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread	Tube OD	C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	(mm) x TP (mm)	mm	mm	mm	lbs/each
Y-1236-MMSH	-12	3/4"	19.0mm	M36x2	25mm	35.0mm	36mm	0.49 lbs
Y-1642-MMSH	-16	1"	25.4mm	M42x2	30mm	40.0mm	46mm	0.85 lbs
Y-2052-MMSH	-20	1-1/4"	31.8mm	M52x2	38mm	45.2mm	55mm	1.37 lbs
