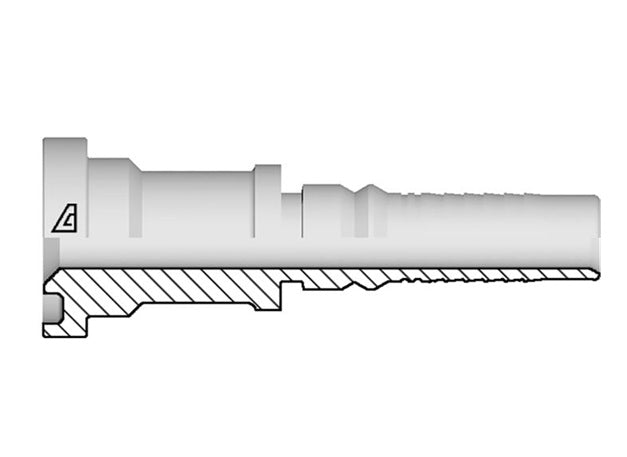

Y-3232-C62S Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -32 Code 62 Flange Interlock x -32 Hose ID | Steel

Y-3232-C62S Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -32 Code 62 Flange Interlock x -32 Hose ID | Steel

Save $44.76 Save $44.76
$156.65
$156.65 - $156.65
$156.65
$111.89
$111.89 - $111.89
$111.89

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Code 62 Flange Interlock x Hose Barb

SAE J518
Specifications for Variant SKU: Y-3232-C62S Kuriyama
Brand: Alfabiotech Evolution
Series: Y Series
Shape (Orientation): Straight
Ends Configuration: 2in Code 62 Flange, 2in Hose Barb
Material(s): Steel
Applicable Specs & Approvals: SAE J518
Compatible with the following Series: E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   E4K Series  |   E5.5K Series
Part Number Hose ID Size Q Flange C Cut-Off
Factor		 Max Working
Pressure		 Weight
Dash
Size		 in mm in mm mm PSI lbs/each
Y-1212-C62S -12 3/4" 19.0mm 1.63" 41.3mm 50.0mm 6000 PSI 0.59 lbs
Y-1616-C62S -16 1" 25.4mm 1.88" 47.6mm 54.0mm 6000 PSI 0.91 lbs
Y-2020-C62S -20 1-1/4" 31.8mm 2.13" 54.0mm 62.2mm 6000 PSI 1.33 lbs
Y-2424-C62S -24 1-1/2" 38.1mm 2.50" 63.5mm 68.5mm 6000 PSI 2.01 lbs
Y-3232-C62S -32 2" 50.8mm 3.13" 79.4mm 87.0mm 6000 PSI 3.60 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
