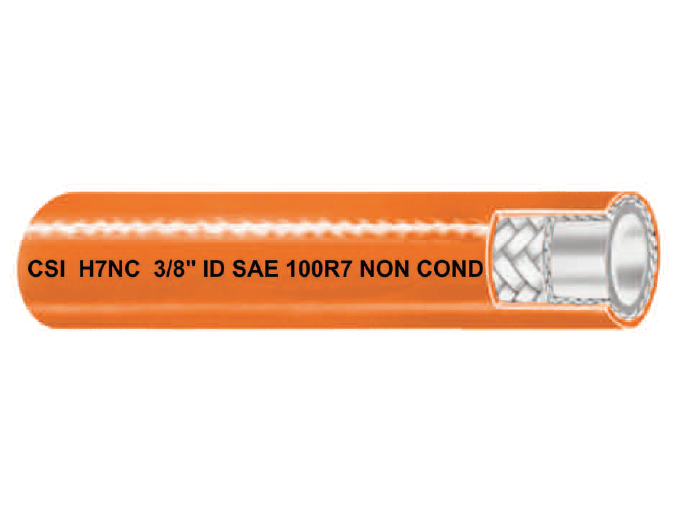

3/8" H7NC Couplamatic Non-Conductive Thermoplastic Hydraulic Hose - Polyester Braid (SAE 100R7) - 3/8" ID - 250ft

3/8" H7NC by Couplamatic | Non-Conductive | Thermoplastic Hydraulic Hose | Polyester Braid | SAE 100R7 | 3/8" ID | 250ft

Save $57.04

$570.37

$570.37 - $570.37

$570.37

$513.33

$513.33 - $513.33

$513.33

Couplamatic Systems Inc.
Polyester Braid - H7NC Non-Conductive Thermoplastic Hydraulic Hose - (SAE 100R7)

Package Quantity: 250 FT

Quantity

Specifications for Variant SKU: 3/8" H7NC Couplamatic \| 250 \|
Series:	H7NC Series
Hose Color(s):	Orange
Dash Size:	-6
Internal Diameter:	0.375in
Outer Diameter:	0.65in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7
Compatible with the following Series:	3 Series \| T Series

Applications:	Medium Pressure Hydraulics, Industrial or Agricultural	SAE Rating:	SAE 100R7
Cover:	Orange Non-Conductive Polyurethane, Non-Perforated	Tube:	Nylon
Reinforcement:	Polyester Braid	Temperature:	-40F to +212F (-40C to +100C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Coil Footage
1/4" H7NC	1/4"	0.508"	2,750 lbs.	11,000 lbs.	1.5"	6 lbs.	250ft
5/16" H7NC	5/16"	0.585"	2,500 lbs.	10,000 lbs.	1.75"	7.5 lbs.	250ft
3/8" H7NC	3/8"	0.650"	2,250 lbs.	9,000 lbs.	2"	10 lbs.	250ft
1/2" H7NC	1/2"	0.815"	2,000 lbs.	8,000 lbs.	3"	15.6 lbs.	250ft
3/4" H7NC	3/4"	1.062"	1,250 lbs.	5,000 lbs.	6.5"	19 lbs.	100ft
1" H7NC	1"	1.335"	1,000 lbs.	4,000 lbs.	8"	27 lbs.	100ft

*Cut lengths available in multiples of 50'*
