1/4" H7NC Couplamatic Non-Conductive Thermoplastic Hydraulic Hose - Polyester Braid (SAE 100R7) - 1/4" ID - 250ft

1/4" H7NC by Couplamatic | Non-Conductive | Thermoplastic Hydraulic Hose | Polyester Braid | SAE 100R7 | 1/4" ID | 250ft

Save $46.11

$461.11

$461.11 - $461.11

$461.11

$415.00

$415.00 - $415.00

$415.00

Couplamatic Systems Inc.

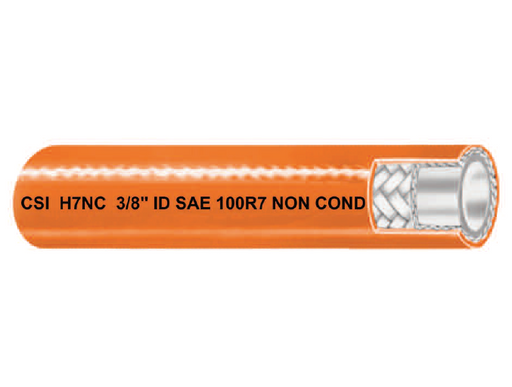

Polyester Braid - H7NC Non-Conductive Thermoplastic Hydraulic Hose - (SAE 100R7)

Package Quantity: 250 FT

Quantity

Specifications for Variant SKU: 1/4" H7NC Couplamatic \| 250 \|
Series:	H7NC Series
Hose Color(s):	Orange
Dash Size:	-4
Internal Diameter:	0.25in
Outer Diameter:	0.508in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7
Compatible with the following Series:	3 Series \| T Series

Applications:	Medium Pressure Hydraulics, Industrial or Agricultural	SAE Rating:	SAE 100R7
Cover:	Orange Non-Conductive Polyurethane, Non-Perforated	Tube:	Nylon
Reinforcement:	Polyester Braid	Temperature:	-40F to +212F (-40C to +100C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Coil Footage
1/4" H7NC	1/4"	0.508"	2,750 lbs.	11,000 lbs.	1.5"	6 lbs.	250ft
5/16" H7NC	5/16"	0.585"	2,500 lbs.	10,000 lbs.	1.75"	7.5 lbs.	250ft
3/8" H7NC	3/8"	0.650"	2,250 lbs.	9,000 lbs.	2"	10 lbs.	250ft
1/2" H7NC	1/2"	0.815"	2,000 lbs.	8,000 lbs.	3"	15.6 lbs.	250ft
3/4" H7NC	3/4"	1.062"	1,250 lbs.	5,000 lbs.	6.5"	19 lbs.	100ft
1" H7NC	1"	1.335"	1,000 lbs.	4,000 lbs.	8"	27 lbs.	100ft

*Cut lengths available in multiples of 50'*

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
