1" H7NC Couplamatic Non-Conductive Thermoplastic Hydraulic Hose - Polyester Braid (SAE 100R7) - 1" ID - 100ft

1" H7NC by Couplamatic | Non-Conductive | Thermoplastic Hydraulic Hose | Polyester Braid | SAE 100R7 | 1" ID | 100ft

Save $442.22

$1,105.55

$1,105.55 - $1,105.55

$1,105.55

$663.33

$663.33 - $663.33

$663.33

Couplamatic Systems Inc.
Polyester Braid - H7NC Non-Conductive Thermoplastic Hydraulic Hose - (SAE 100R7)

Package Quantity: 100 FT

Specifications for Variant SKU: 1" H7NC Couplamatic \| 100 \|
Series:	H7NC Series
Hose Color(s):	Orange
Dash Size:	-16
Internal Diameter:	1in
Outer Diameter:	1.335in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7
Compatible with the following Series:	3 Series \| T Series

SAE 100R7 — Non-Conductive

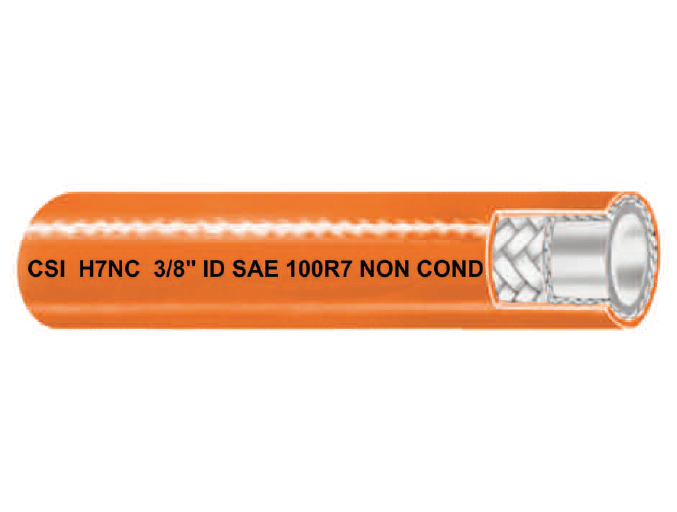

H7NC Non-Conductive Thermoplastic Hydraulic Hose

Medium pressure SAE 100R7 thermoplastic hose with an orange non-conductive polyurethane cover, for aerial lifts, bucket trucks and utility equipment.

1

What is this hose used for?

Medium Pressure Hydraulics
Industrial
Agricultural

2

What are the key specifications?

SAE Rating

SAE 100R7

Cover

Orange Non-Conductive Polyurethane, Non-Perforated

Tube

Nylon

Reinforcement

Polyester Braid

Temperature

-40°F to +212°F (-40°C to +100°C)

Size Range

1/4" to 1"

3

What are the main product features?

Non-conductive cover — orange polyurethane, non-perforated, for work near energized conductors.
High visibility orange — the standard identification color for non-conductive hydraulic hose.
Nylon tube, polyester braid — lightweight medium pressure construction.
Sizes 1/4" through 1" — covers most utility boom circuits.

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Coil Footage
1/4" H7NC	1/4"	0.508"	2,750 lbs.	11,000 lbs.	1.5"	6 lbs.	250ft
5/16" H7NC	5/16"	0.585"	2,500 lbs.	10,000 lbs.	1.75"	7.5 lbs.	250ft
3/8" H7NC	3/8"	0.650"	2,250 lbs.	9,000 lbs.	2"	10 lbs.	250ft
1/2" H7NC	1/2"	0.815"	2,000 lbs.	8,000 lbs.	3"	15.6 lbs.	250ft
3/4" H7NC	3/4"	1.062"	1,250 lbs.	5,000 lbs.	6.5"	19 lbs.	100ft
1" H7NC	1"	1.335"	1,000 lbs.	4,000 lbs.	8"	27 lbs.	100ft

i

Cut lengths are available in multiples of 50'. Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
