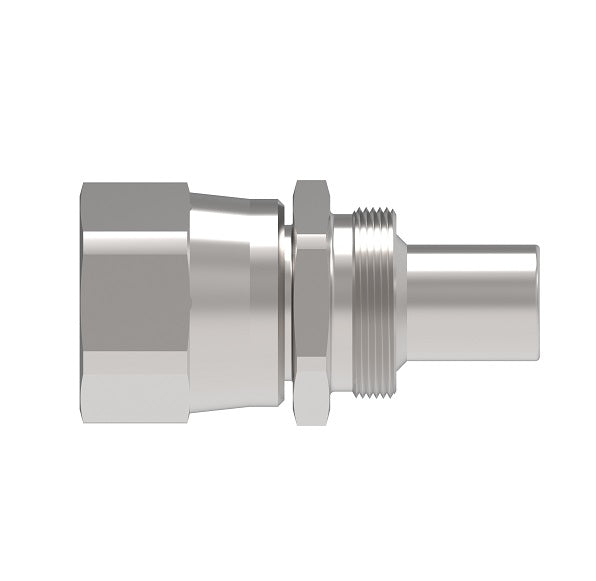

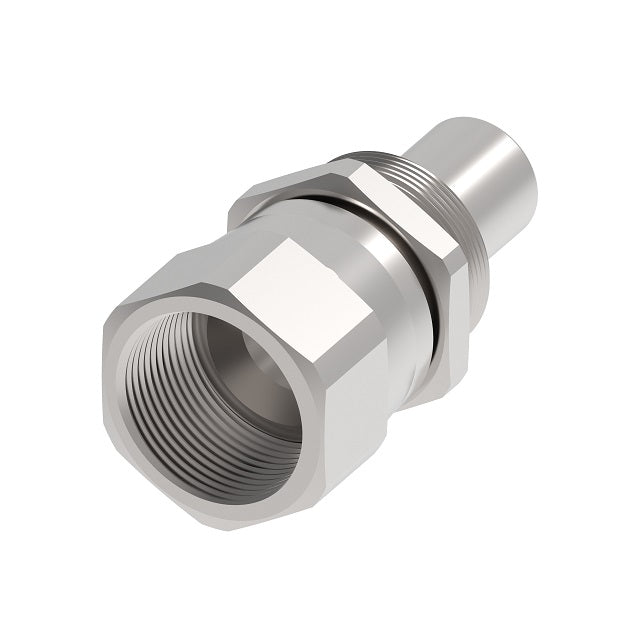

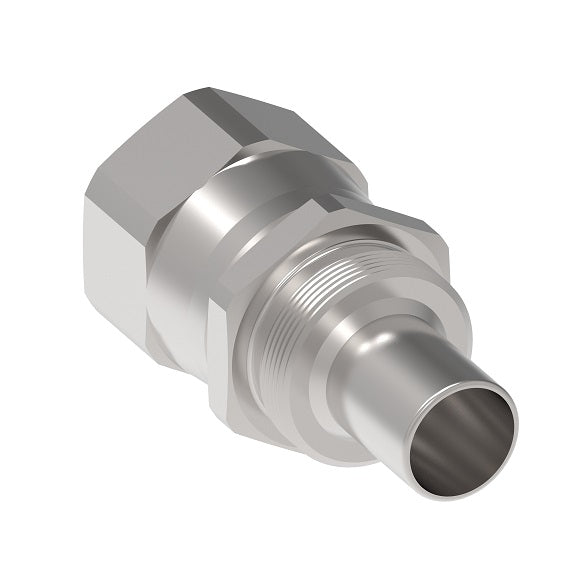

473A-12C Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -12 Female 37° JIC Flare Swivel x -12 Reusable Hose End | Stainless Steel

473A-12C Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -12 Female 37° JIC Flare Swivel x -12 Reusable Hose End | Stainless Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,592.40 - $1,592.40

$1,592.40

$1,592.40 - $1,592.40

$1,592.40

Aeroquip® by Danfoss
Reusable PTFE Hose Fitting - Nipple Assembly - Female 37° JIC Flare Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 473A-12C Danfoss \| 10 \|
Brand:	Aeroquip
Ends Configuration:	3/4in Female JIC, 3/4in Reusable Hose End
Material(s):	Stainless Steel
Applicable Specs & Approvals:	Swivel
Compatible with the following Series:	2807 Series


Carbon Steel Part Number	Stainless Steel Part Number	Brass & Steel Part Number	Tube OD Size	Thread	A	B	D	EØ
473A-3S	-	-	-	-	-	-	-	-
473A-4S	473A-4C	63-473A-4	1/4"	7/16-20	1.58"	0.76	1.13"	0.16"
-	473A-5C	63-473A-5	5/16"	1/2-20	1.68"	0.77"	1.17"	.23"
473A-6S	473A-6C	63-473A-6	3/8	9/16-18	1.74"	.82"	1.22"	.26"
473A-8S	473A-8C	63-473A-8	1/2"	3/4-16	1.98"	0.91"	1.35"	0.38"
473A-10S	473A-10C	63-473A-10	5/8"	7/8-14	2.22"	1.02"	1.54"	0.47"
473A-12S	473A-12C	63-473A-12	3/4"	1-1/16-12	2.33"	1.10"	1.67"	0.59"
-	473A-16C	63-473A-16	1"	1-5/16-12	2.52"	1.31"	1.91"	0.83"
-	473A-20C	63-473A-20	1-1/4"	1-5/8-12	2.92"	1.63"	2.27"	1.06"
