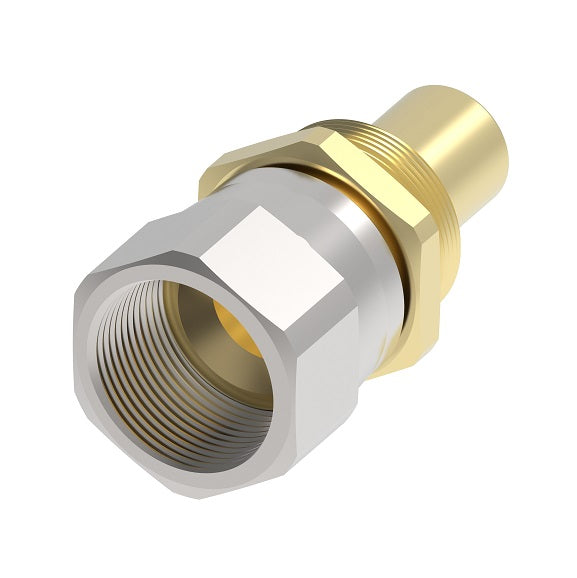

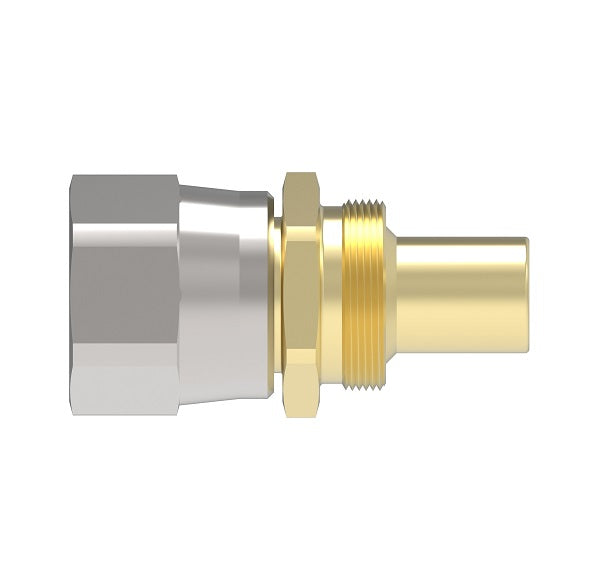

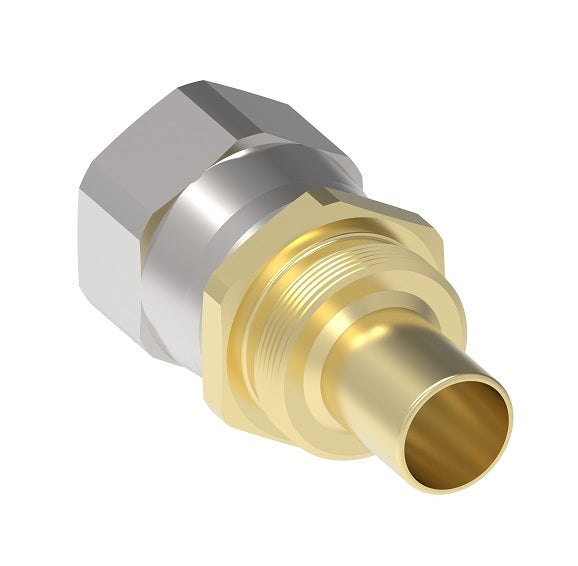

63-473A-5 Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -05 Female 37° JIC Flare Swivel x -05 Reusable Hose End | Brass & Steel
63-473A-5 Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -05 Female 37° JIC Flare Swivel x -05 Reusable Hose End | Brass & Steel
63-473A-5 Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -05 Female 37° JIC Flare Swivel x -05 Reusable Hose End | Brass & Steel
63-473A-5 Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -05 Female 37° JIC Flare Swivel x -05 Reusable Hose End | Brass & Steel

63-473A-5 Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -05 Female 37° JIC Flare Swivel x -05 Reusable Hose End | Brass & Steel

$12.32 - $12.32
$12.32
$12.32 - $12.32
$12.32

Aeroquip® by Danfoss
Reusable PTFE Hose Fitting - Nipple Assembly - Female 37° JIC Flare Swivel - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 63-473A-5 Danfoss
Brand: Aeroquip
Ends Configuration: 5/16in Female JIC, 5/16in Reusable Hose End
Material(s): Brass, Steel
Applicable Specs & Approvals: Swivel
Compatible with the following Series: 2807 Series
Carbon Steel
Part Number 		Stainless Steel
Part Number 		Brass & Steel
Part Number 		Tube OD Size Thread A B D EØ
473A-3S - - - - - - - -
473A-4S 473A-4C 63-473A-4 1/4" 7/16-20 1.58" 0.76 1.13" 0.16"
- 473A-5C 63-473A-5 5/16" 1/2-20 1.68" 0.77" 1.17" .23"
473A-6S 473A-6C 63-473A-6 3/8 9/16-18 1.74" .82" 1.22" .26"
473A-8S 473A-8C 63-473A-8 1/2" 3/4-16 1.98" 0.91" 1.35" 0.38"
473A-10S 473A-10C 63-473A-10 5/8" 7/8-14 2.22" 1.02" 1.54" 0.47"
473A-12S 473A-12C 63-473A-12 3/4" 1-1/16-12 2.33" 1.10" 1.67" 0.59"
- 473A-16C 63-473A-16 1" 1-5/16-12 2.52" 1.31" 1.91" 0.83"
- 473A-20C 63-473A-20 1-1/4" 1-5/8-12 2.92" 1.63" 2.27" 1.06"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
