Aeroquip® by Danfoss

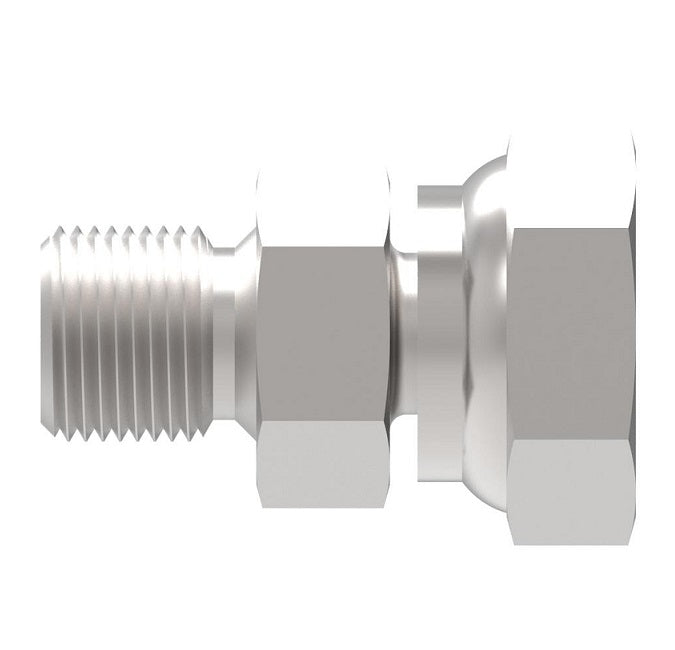

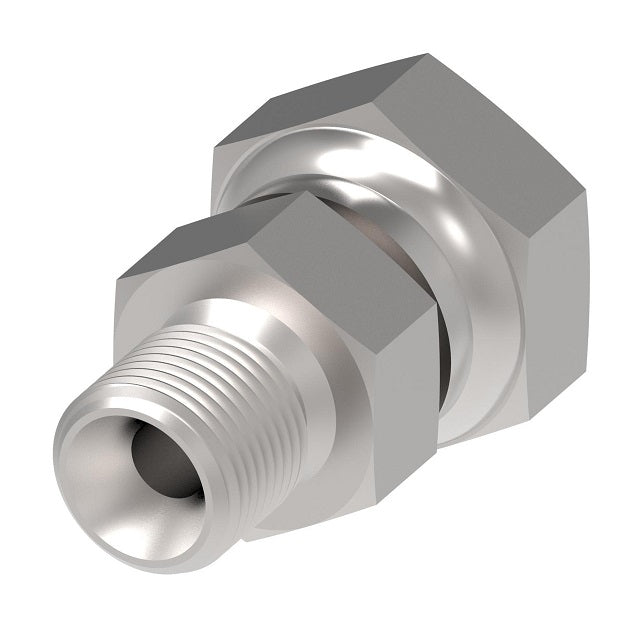

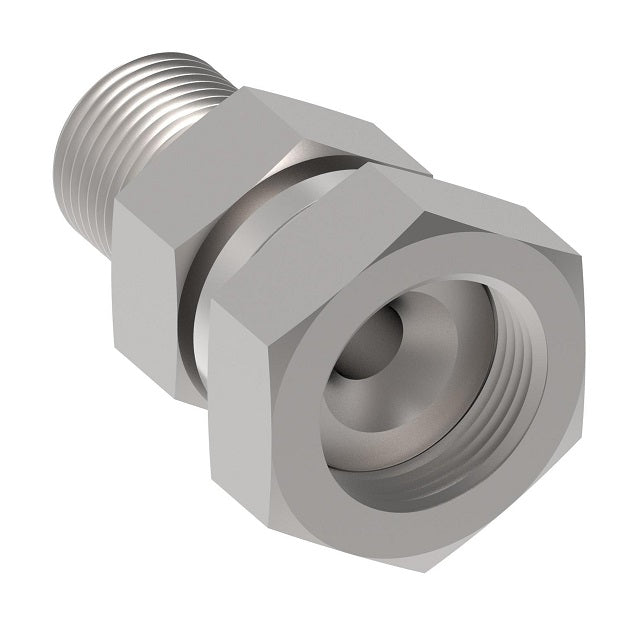

37° JIC / BSPP Swivel Adapter
Female JIC 37° Swivel x Male BSPP
Straight

Formerly Weatherhead series M9600x

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF4179-0606S Danfoss
Brand:	Aeroquip
Ends Configuration:	3/8in Female JIC, 3/8in Male BSPP
Material(s):	Carbon Steel
Applicable Specs & Approvals:	Swivel


Steel Part Number	Tube OD	Male BSPP	Hex Size	Hex C1	D	D1	L
FF4179-0404S	1/4"	G 1/4-19	9/16"	9/16"	.172"	.198"*	1.43"
FF4179-0504S	-	-	-	-	-	-	-
FF4179-0604S	3/8"	G 1/4-19	11/16"	11/16"	.297"	.198"*	1.56"
FF4179-0606S	3/8"	G 3/8-19	11/16"	11/16"	.297"	.322"*	1.66"
FF4179-0806S	1/2"	G 3/8-19	7/8"	7/8"	.391"	.322"*	1.77"
FF4179-0808S	1/2"	G 1/2-14	7/8"	7/8"	.391"	.448"*	1.92"
FF4179-1008S	5/8"	G 1/2-14	1"	1"	.484"	.448"*	1.97"
FF4179-1212S	3/4"	G 3/4-14	1-1/4"	1-1/8"	.609"	.666"*	2.25"
FF4179-1616S	1"	G 1-11	1-1/2"	1-3/8"	.845"	.885"*	2.48"

* Optional counterbore
