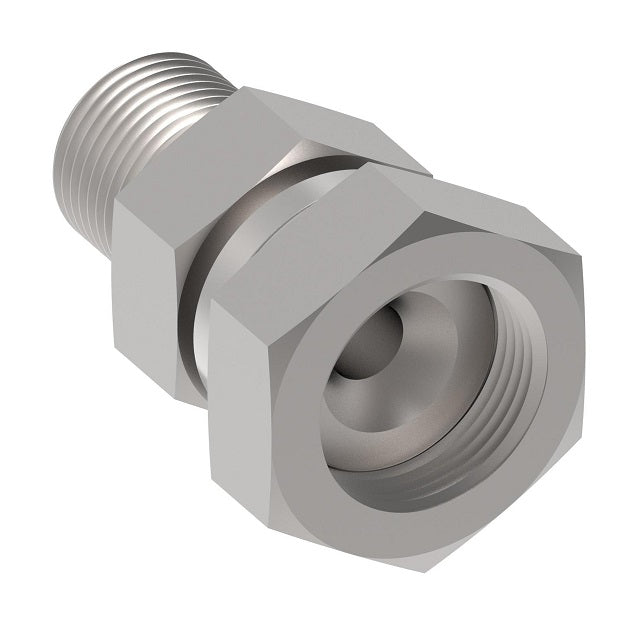

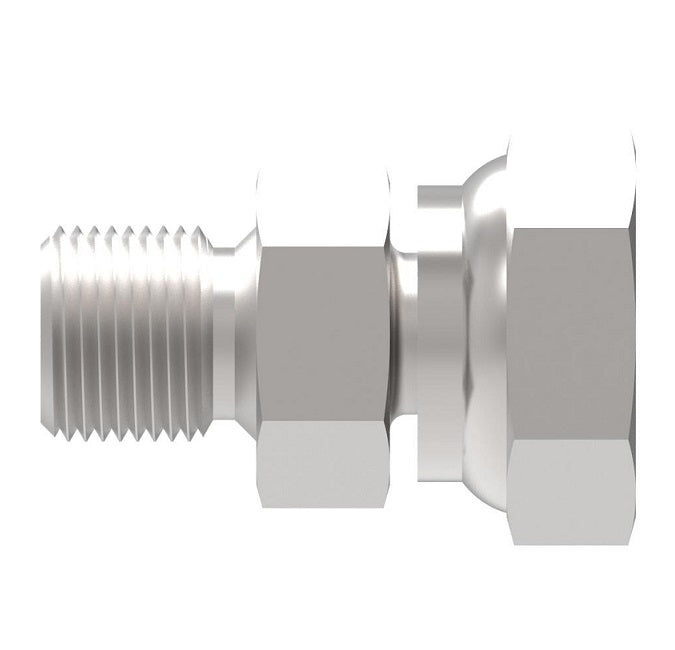

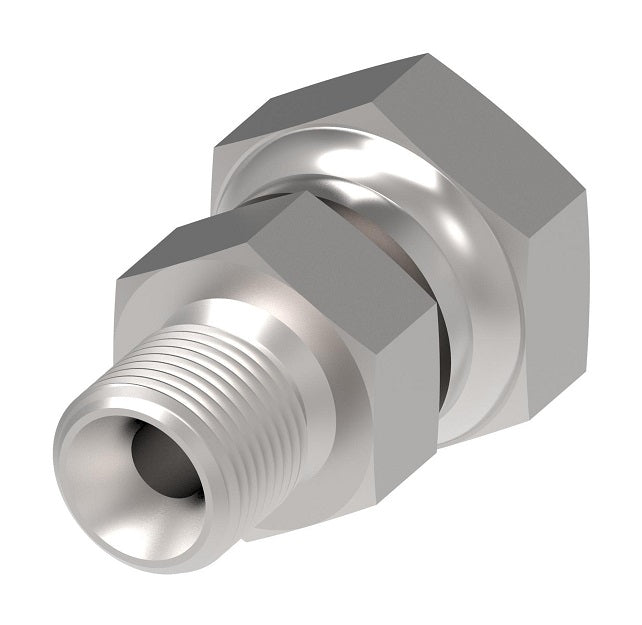

FF4179-1008S Aeroquip by Danfoss | 37° JIC / BSPP Swivel Adapter | -10 Female 37° JIC Swivel x -08 Male BSPP | Carbon Steel

FF4179-1008S Aeroquip by Danfoss | 37° JIC / BSPP Swivel Adapter | -10 Female 37° JIC Swivel x -08 Male BSPP | Carbon Steel

Name: FF4179-1008S Aeroquip by Danfoss | 37° JIC / BSPP Swivel Adapter | -10 Female 37° JIC Swivel x -08 Male BSPP | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4179-1008S Danfoss
Price: 17.52 USD
Availability: InStock

$17.52 - $17.52

$17.52

$17.52 - $17.52

$17.52

Aeroquip® by Danfoss
37° JIC / BSPP Swivel Adapter
Female JIC 37° Swivel x Male BSPP
Straight

Formerly Weatherhead series M9600x

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF4179-1008S Danfoss
Brand:	Aeroquip
Ends Configuration:	3/4in Female JIC, 1/2in Male BSPP
Material(s):	Carbon Steel
Applicable Specs & Approvals:	Swivel


Steel Part Number	Tube OD	Male BSPP	Hex Size	Hex C1	D	D1	L
FF4179-0404S	1/4"	G 1/4-19	9/16"	9/16"	.172"	.198"*	1.43"
FF4179-0504S	-	-	-	-	-	-	-
FF4179-0604S	3/8"	G 1/4-19	11/16"	11/16"	.297"	.198"*	1.56"
FF4179-0606S	3/8"	G 3/8-19	11/16"	11/16"	.297"	.322"*	1.66"
FF4179-0806S	1/2"	G 3/8-19	7/8"	7/8"	.391"	.322"*	1.77"
FF4179-0808S	1/2"	G 1/2-14	7/8"	7/8"	.391"	.448"*	1.92"
FF4179-1008S	5/8"	G 1/2-14	1"	1"	.484"	.448"*	1.97"
FF4179-1212S	3/4"	G 3/4-14	1-1/4"	1-1/8"	.609"	.666"*	2.25"
FF4179-1616S	1"	G 1-11	1-1/2"	1-3/8"	.845"	.885"*	2.48"

* Optional counterbore

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
