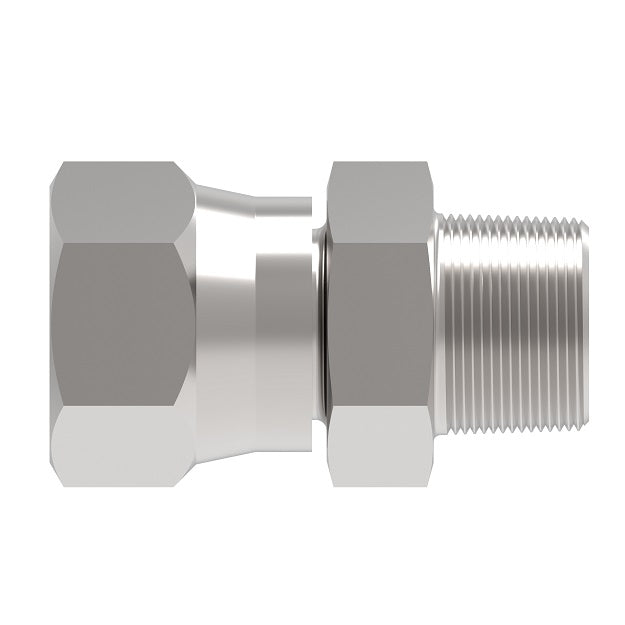

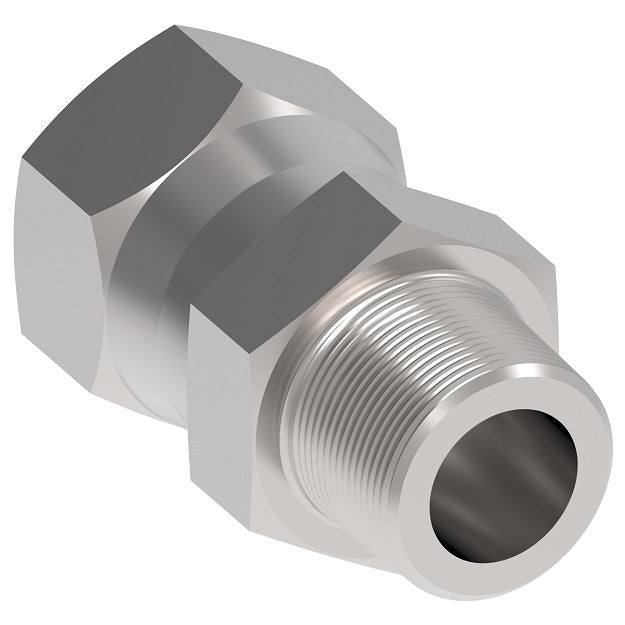

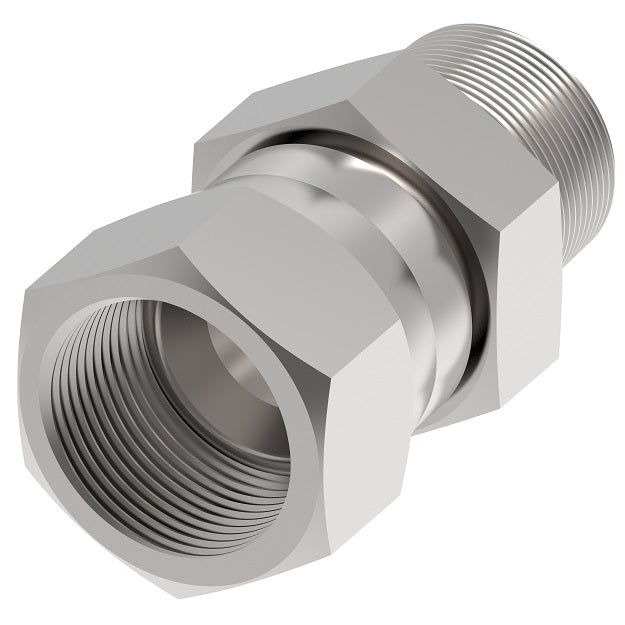

FF4180-1014S Aeroquip by Danfoss | 37° JIC/Metric Adapter | -10 Female 37° JIC Swivel x M20 Male Metric Taper Pipe | Carbon Steel

FF4180-1014S Aeroquip by Danfoss | 37° JIC/Metric Adapter | -10 Female 37° JIC Swivel x M20 Male Metric Taper Pipe | Carbon Steel

Name: FF4180-1014S Aeroquip by Danfoss | 37° JIC/Metric Adapter | -10 Female 37° JIC Swivel x M20 Male Metric Taper Pipe | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4180-1014S Danfoss
Price: 46.41 USD
Availability: InStock

$46.41 - $46.41

$46.41

$46.41 - $46.41

$46.41

Aeroquip® by Danfoss
37° JIC/Metric Taper Adapter
Female 37° JIC Swivel x Male Metric Taper Pipe
Straight

Formerly Weatherhead series M9700x

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF4180-1014S Danfoss
Brand:	Aeroquip
Material(s):	Carbon Steel
Applicable Specs & Approvals:	Swivel

Specifications:

Pipe thread per DIN 3852


Steel Part Number	Tube OD	Taper Pipe Thread Metric	Hex C	Hex C1	D	L
FF4180-0406S	1/4"	M10x1.0	9/16"	9/16"	.172"	1.25"
FF4180-0508S	5/16"	M12x1.5	11/16"	5/8"	.234"	1.54"
FF4180-0610S	3/8"	M14x1.5	11/16"	11/16"	.297"	1.60"
FF4180-0812S	1/2"	M16x1.5	7/8"	7/8"	.391"	1.78"
FF4180-1014S	5/8"	M20x1.5	1"	1"	.484"	1.91"
FF4180-1220S	3/4"	M24x1.5	1-1/8"	1-1/8"	.609"	2.04"
FF4180-1625S	1"	M27x2.0	1-3/8"	1-1/2"	.845"	2.30"
FF4180-2032S	1-1/4"	M36x2.0	1-7/8"	2"	1.079"	2.43"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
