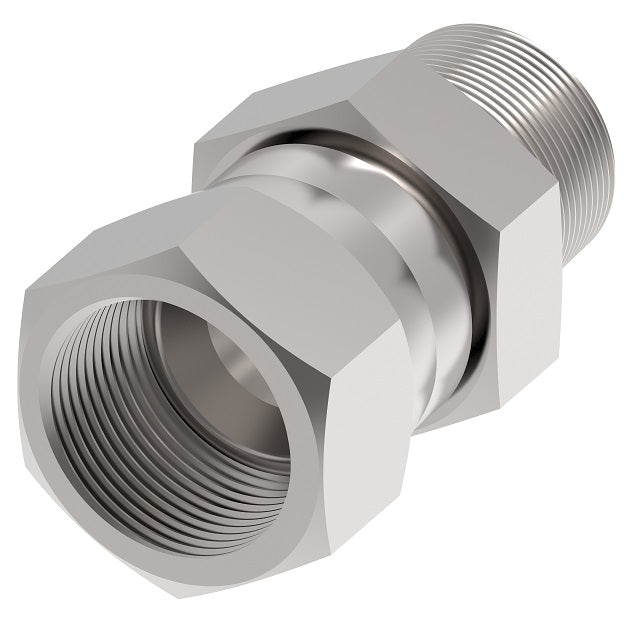

FF4180-2032S Aeroquip by Danfoss | 37° JIC/Metric Adapter | -20 Female 37° JIC Swivel x M36 Male Metric Taper Pipe | Carbon Steel

FF4180-2032S Aeroquip by Danfoss | 37° JIC/Metric Adapter | -20 Female 37° JIC Swivel x M36 Male Metric Taper Pipe | Carbon Steel

Name: FF4180-2032S Aeroquip by Danfoss | 37° JIC/Metric Adapter | -20 Female 37° JIC Swivel x M36 Male Metric Taper Pipe | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4180-2032S Danfoss
Price: 38.85 USD
Availability: InStock

$38.85 - $38.85

$38.85

$38.85 - $38.85

$38.85

Aeroquip® by Danfoss
37° JIC/Metric Taper Adapter
Female 37° JIC Swivel x Male Metric Taper Pipe
Straight

Formerly Weatherhead series M9700x

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF4180-2032S Danfoss
Brand:	Aeroquip
Material(s):	Carbon Steel
Applicable Specs & Approvals:	Swivel

Specifications:

Pipe thread per DIN 3852


Steel Part Number	Tube OD	Taper Pipe Thread Metric	Hex C	Hex C1	D	L
FF4180-0406S	1/4"	M10x1.0	9/16"	9/16"	.172"	1.25"
FF4180-0508S	5/16"	M12x1.5	11/16"	5/8"	.234"	1.54"
FF4180-0610S	3/8"	M14x1.5	11/16"	11/16"	.297"	1.60"
FF4180-0812S	1/2"	M16x1.5	7/8"	7/8"	.391"	1.78"
FF4180-1014S	5/8"	M20x1.5	1"	1"	.484"	1.91"
FF4180-1220S	3/4"	M24x1.5	1-1/8"	1-1/8"	.609"	2.04"
FF4180-1625S	1"	M27x2.0	1-3/8"	1-1/2"	.845"	2.30"
FF4180-2032S	1-1/4"	M36x2.0	1-7/8"	2"	1.079"	2.43"
