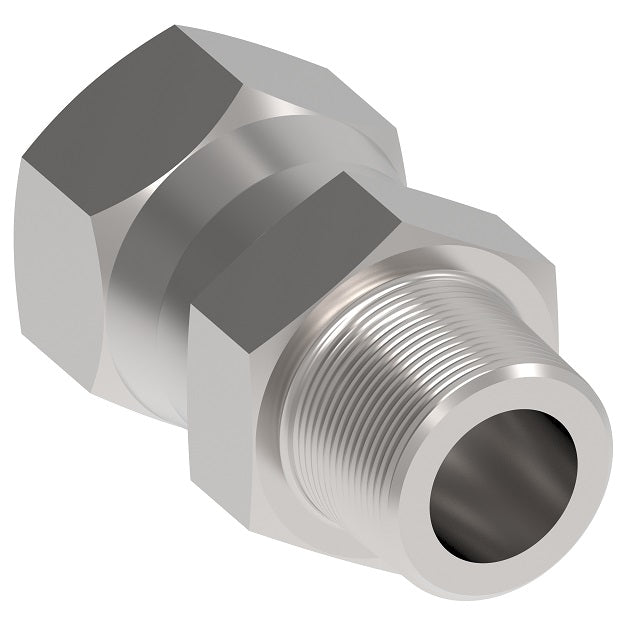

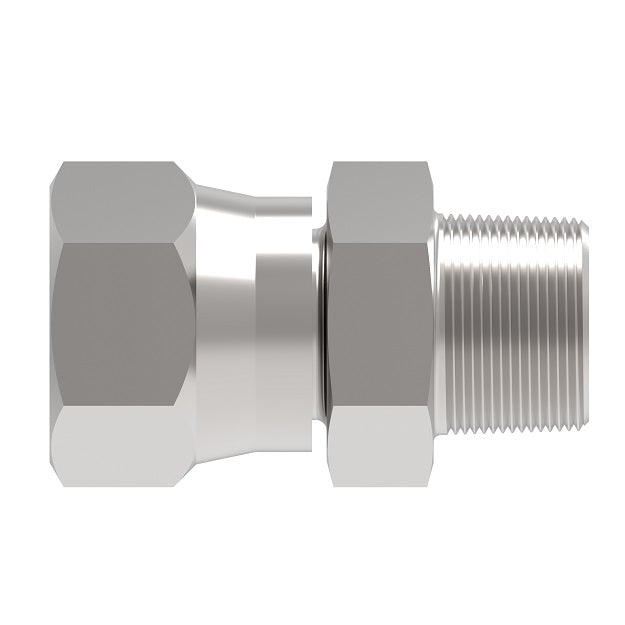

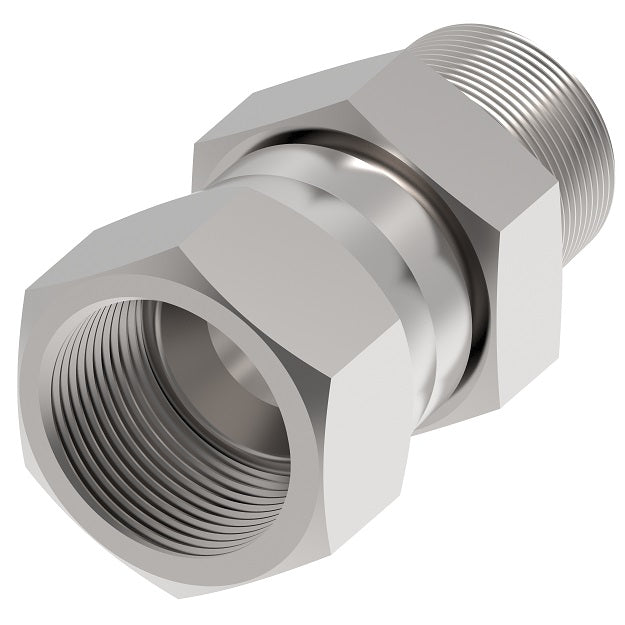

FF4181-1208S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -12 Female 37° JIC Swivel x -08 Male BSPT | Carbon Steel
FF4181-1208S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -12 Female 37° JIC Swivel x -08 Male BSPT | Carbon Steel
FF4181-1208S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -12 Female 37° JIC Swivel x -08 Male BSPT | Carbon Steel
FF4181-1208S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -12 Female 37° JIC Swivel x -08 Male BSPT | Carbon Steel

FF4181-1208S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -12 Female 37° JIC Swivel x -08 Male BSPT | Carbon Steel

$58.63 - $58.63
$58.63
$58.63 - $58.63
$58.63

Aeroquip® by Danfoss
37° JIC/BSPT Swivel Adapter
Female 37° JIC Swivel x Male BSPT
Straight

Formerly Weatherhead series M9800x.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF4181-1208S Danfoss
Brand: Aeroquip
Ends Configuration: 3/4in Female JIC, 1/2in Male BSPT
Material(s): Carbon Steel
Applicable Specs & Approvals: Swivel
Steel
Part Number 		Tube OD BSPT Pipe Hex Hex C1 D D1 L
FF4181-0404S 1/4" G 1/4-19 9/16" 9/16" .172" .281"* 1.56"
FF4181-0504S 5/16" G 1/4-19 11/16" 5/8" .234" .281"* 1.63"
FF4181-0604S 3/8" G 1/4-19 11/16" 11/16" .297" .281" 1.69"
FF4181-0804S 1/2" G 1/4-19 7/8" 7/8" .391" .281" 1.87"
FF4181-0806S 1/2" G 3/8-19 7/8" 7/8" .391" .406"* 1.87"
FF4181-0808S 1/2" G 1/2-14 7/8" 7/8" .391" .531"* 2.06"
FF4181-1008S 5/8" G 1/2-14 1" 1" .484" .531"* 2.11"
FF4181-1208S 3/4" G 1/2-14 1-1/8" 1-1/4" .609" .531" 2.21"
FF4181-1212S 3/4" G 3/4-14 1-1/8" 1-1/4" .609" .719"* 2.24"
FF4181-1612S 1" G 3/4-14 1-3/8" 1-1/2" .845" .719" 2.39"
FF4181-1616S 1" G 1-11 1-3/8" 1-1/2" .845" .938"* 2.55"
FF4181-2020S 1-1/4" G 1 1/4-11 1-7/8" 2" 1.079" 1.125"* 2.73"

*Optional counterbore.
