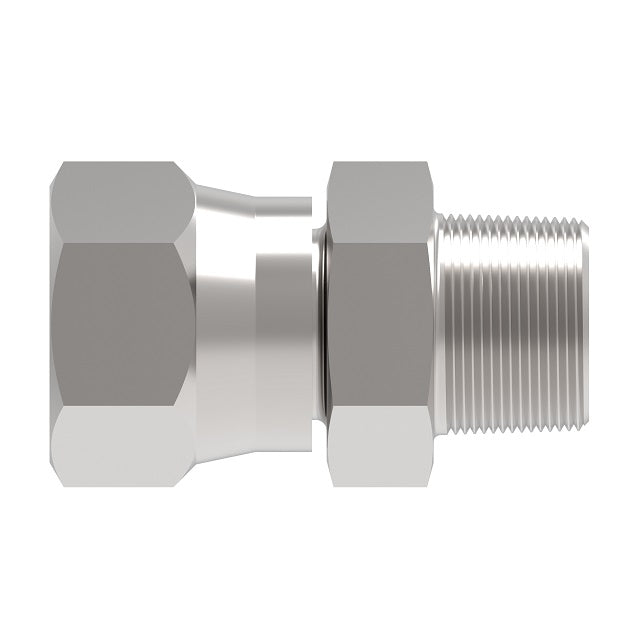

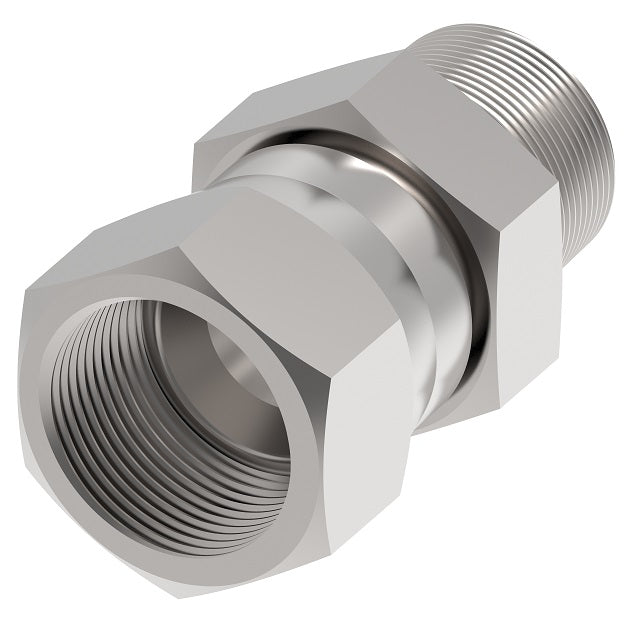

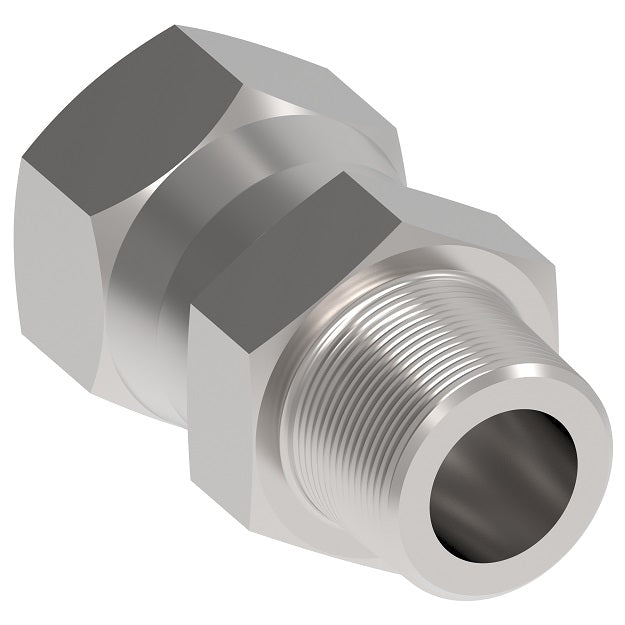

FF4181-1616S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -16 Female 37° JIC Swivel x -16 Male BSPT | Carbon Steel
FF4181-1616S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -16 Female 37° JIC Swivel x -16 Male BSPT | Carbon Steel
FF4181-1616S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -16 Female 37° JIC Swivel x -16 Male BSPT | Carbon Steel
FF4181-1616S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -16 Female 37° JIC Swivel x -16 Male BSPT | Carbon Steel

FF4181-1616S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -16 Female 37° JIC Swivel x -16 Male BSPT | Carbon Steel

$28.64 - $28.64
$28.64
$28.64 - $28.64
$28.64

Aeroquip® by Danfoss
37° JIC/BSPT Swivel Adapter
Female 37° JIC Swivel x Male BSPT
Straight

Formerly Weatherhead series M9800x.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF4181-1616S Danfoss
Brand: Aeroquip
Ends Configuration: 1in Female JIC, 1in Male BSPT
Material(s): Carbon Steel
Applicable Specs & Approvals: Swivel
Steel
Part Number 		Tube OD BSPT Pipe Hex Hex C1 D D1 L
FF4181-0404S 1/4" G 1/4-19 9/16" 9/16" .172" .281"* 1.56"
FF4181-0504S 5/16" G 1/4-19 11/16" 5/8" .234" .281"* 1.63"
FF4181-0604S 3/8" G 1/4-19 11/16" 11/16" .297" .281" 1.69"
FF4181-0804S 1/2" G 1/4-19 7/8" 7/8" .391" .281" 1.87"
FF4181-0806S 1/2" G 3/8-19 7/8" 7/8" .391" .406"* 1.87"
FF4181-0808S 1/2" G 1/2-14 7/8" 7/8" .391" .531"* 2.06"
FF4181-1008S 5/8" G 1/2-14 1" 1" .484" .531"* 2.11"
FF4181-1208S 3/4" G 1/2-14 1-1/8" 1-1/4" .609" .531" 2.21"
FF4181-1212S 3/4" G 3/4-14 1-1/8" 1-1/4" .609" .719"* 2.24"
FF4181-1612S 1" G 3/4-14 1-3/8" 1-1/2" .845" .719" 2.39"
FF4181-1616S 1" G 1-11 1-3/8" 1-1/2" .845" .938"* 2.55"
FF4181-2020S 1-1/4" G 1 1/4-11 1-7/8" 2" 1.079" 1.125"* 2.73"

*Optional counterbore.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
